机器学习：matlab实现协同过滤算法进行电影推荐

本练习ex8的压缩包已上传至我的资源已上传至我的资源 ，结合本篇博客食用更佳。

原理

原理在此，其实就是改了一下代价-梯度函数的回归算法。

载入数据

MovieLens 100k Dataset from GroupLens Research. 包含943位用户、1682部电影。

% Load data
load('ex8_movies.mat');

% From the matrix, we can compute statistics like average rating.
fprintf('Average rating for movie 1 (Toy Story): %f / 5\n\n', mean(Y(1, R(1, :))));
%  We can "visualize" the ratings matrix by plotting it with imagesc
imagesc(Y);
ylabel('Movies');
xlabel('Users');

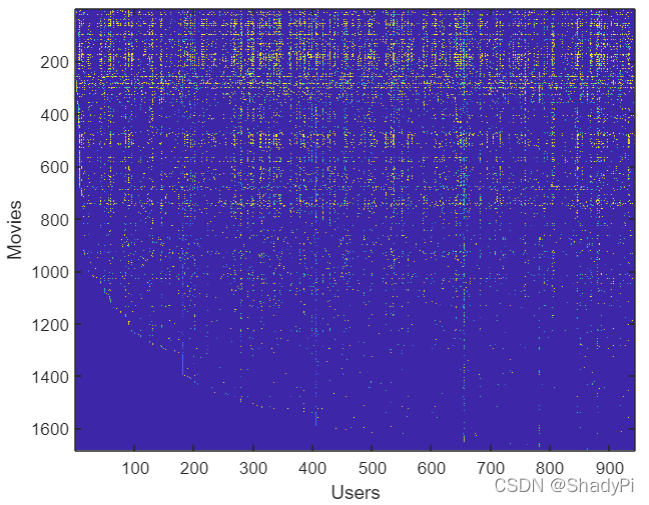

可以可视化看一看，跟背景一个颜色（蓝色）就是无评分，其他的就是不同颜色表示不同评分：

代价-梯度函数

表达式原理部分已经有了，照着表达式进行向量化即可，记住向量化的真理：按照矩阵运算规则替换代数公式。

另外要注意跟最优化函数保持兼容，所以代价-梯度函数的输入输出都是列向量，这点跟神经网络部分很像。

function [J, grad] = cofiCostFunc(params, Y, R, num_users, num_movies, ...
                                  num_features, lambda)
%COFICOSTFUNC Collaborative filtering cost function
%   [J, grad] = COFICOSTFUNC(params, Y, R, num_users, num_movies, ...
%   num_features, lambda) returns the cost and gradient for the
%   collaborative filtering problem.
%

% Unfold the U and W matrices from params
X = reshape(params(1:num_movies*num_features), num_movies, num_features);
Theta = reshape(params(num_movies*num_features+1:end), ...
                num_users, num_features);


% You need to return the following values correctly
J = 0;
X_grad = zeros(size(X));
Theta_grad = zeros(size(Theta));

% ====================== YOUR CODE HERE ======================
% Instructions: Compute the cost function and gradient for collaborative
%               filtering. Concretely, you should first implement the cost
%               function (without regularization) and make sure it is
%               matches our costs. After that, you should implement the
%               gradient and use the checkCostFunction routine to check
%               that the gradient is correct. Finally, you should implement
%               regularization.
%
% Notes: X - num_movies  x num_features matrix of movie features
%        Theta - num_users  x num_features matrix of user features
%        Y - num_movies x num_users matrix of user ratings of movies
%        R - num_movies x num_users matrix, where R(i, j) = 1 if the
%            i-th movie was rated by the j-th user
%
% You should set the following variables correctly:
%
%        X_grad - num_movies x num_features matrix, containing the
%                 partial derivatives w.r.t. to each element of X
%        Theta_grad - num_users x num_features matrix, containing the
%                     partial derivatives w.r.t. to each element of Theta
%

E=(X*Theta'-Y).*R;
J=sum(sum(E.^2))/2+(lambda/2)*sum(sum(Theta.^2))+(lambda/2)*sum(sum(X.^2));

Theta_grad=E'*X+lambda*Theta;
X_grad=E*Theta+lambda*X;


% =============================================================

grad = [X_grad(:); Theta_grad(:)];

end

如果你觉得求梯度比较复杂，担心出错，可以使用梯度检验，该代码由吴恩达提供。

function numgrad = computeNumericalGradient(J, theta)
%COMPUTENUMERICALGRADIENT Computes the gradient using "finite differences"
%and gives us a numerical estimate of the gradient.
%   numgrad = COMPUTENUMERICALGRADIENT(J, theta) computes the numerical
%   gradient of the function J around theta. Calling y = J(theta) should
%   return the function value at theta.

% Notes: The following code implements numerical gradient checking, and
%        returns the numerical gradient.It sets numgrad(i) to (a numerical
%        approximation of) the partial derivative of J with respect to the
%        i-th input argument, evaluated at theta. (i.e., numgrad(i) should
%        be the (approximately) the partial derivative of J with respect
%        to theta(i).)
%

numgrad = zeros(size(theta));
perturb = zeros(size(theta));
e = 1e-4;
for p = 1:numel(theta)
    % Set perturbation vector
    perturb(p) = e;
    loss1 = J(theta - perturb);
    loss2 = J(theta + perturb);
    % Compute Numerical Gradient
    numgrad(p) = (loss2 - loss1) / (2*e);
    perturb(p) = 0;
end

end

function checkCostFunction(lambda)
%CHECKCOSTFUNCTION Creates a collaborative filering problem
%to check your cost function and gradients
%   CHECKCOSTFUNCTION(lambda) Creates a collaborative filering problem
%   to check your cost function and gradients, it will output the
%   analytical gradients produced by your code and the numerical gradients
%   (computed using computeNumericalGradient). These two gradient
%   computations should result in very similar values.

% Set lambda
if ~exist('lambda', 'var') || isempty(lambda)
    lambda = 0;
end

%% Create small problem
X_t = rand(4, 3);
Theta_t = rand(5, 3);

% Zap out most entries
Y = X_t * Theta_t';
Y(rand(size(Y)) > 0.5) = 0;
R = zeros(size(Y));
R(Y ~= 0) = 1;

%% Run Gradient Checking
X = randn(size(X_t));
Theta = randn(size(Theta_t));
num_users = size(Y, 2);
num_movies = size(Y, 1);
num_features = size(Theta_t, 2);

numgrad = computeNumericalGradient( ...
                @(t) cofiCostFunc(t, Y, R, num_users, num_movies, ...
                                num_features, lambda), [X(:); Theta(:)]);

[cost, grad] = cofiCostFunc([X(:); Theta(:)],  Y, R, num_users, ...
                          num_movies, num_features, lambda);

disp([numgrad grad]);
fprintf(['The above two columns you get should be very similar.\n' ...
         '(Left-Your Numerical Gradient, Right-Analytical Gradient)\n\n']);

diff = norm(numgrad-grad)/norm(numgrad+grad);
fprintf(['If your cost function implementation is correct, then \n' ...
         'the relative difference will be small (less than 1e-9). \n' ...
         '\nRelative Difference: %g\n'], diff);

end

求解

求解还是那一套，调用大佬写的函数就完事了，记得均值归一化。

function [Ynorm, Ymean] = normalizeRatings(Y, R)
%NORMALIZERATINGS Preprocess data by subtracting mean rating for every
%movie (every row)
%   [Ynorm, Ymean] = NORMALIZERATINGS(Y, R) normalized Y so that each movie
%   has a rating of 0 on average, and returns the mean rating in Ymean.
%

[m, n] = size(Y);
Ymean = zeros(m, 1);
Ynorm = zeros(size(Y));
for i = 1:m
    idx = find(R(i, :) == 1);
    Ymean(i) = mean(Y(i, idx));
    Ynorm(i, idx) = Y(i, idx) - Ymean(i);
end

end

%  Load data
load('ex8_movies.mat');

%  Y is a 1682x943 matrix, containing ratings (1-5) of 1682 movies by 943 users
%  R is a 1682x943 matrix, where R(i,j) = 1 if and only if user j gave a rating to movie i
%  Add our own ratings to the data matrix
Y = [my_ratings Y];
R = [(my_ratings ~= 0) R];

%  Normalize Ratings
[Ynorm, Ymean] = normalizeRatings(Y, R);

%  Useful Values
num_users = size(Y, 2);
num_movies = size(Y, 1);
num_features = 10;

% Set Initial Parameters (Theta, X)
X = randn(num_movies, num_features);
Theta = randn(num_users, num_features);
initial_parameters = [X(:); Theta(:)];

% Set options for fmincg
options = optimset('GradObj','on','MaxIter',100);

% Set Regularization
lambda = 10;
theta = fmincg(@(t)(cofiCostFunc(t, Ynorm, R, num_users, num_movies, num_features,lambda)), initial_parameters, options);

% Unfold the returned theta back into U and W
X = reshape(theta(1:num_movies*num_features), num_movies, num_features);
Theta = reshape(theta(num_movies*num_features+1:end), num_users, num_features);

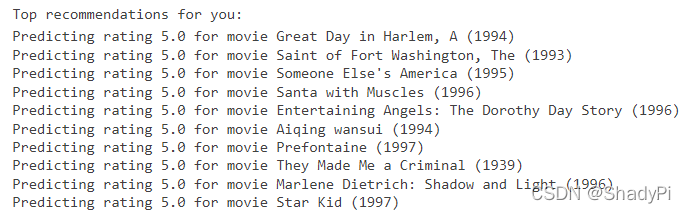

预测

求出了$\Theta$和$X$就相当于求得了用户的喜好与电影的特征值，根据这些参数我们就可以为用户推荐电影了：

p = X * Theta';
my_predictions = p(:,1) + Ymean;

movieList = loadMovieList();

[r, ix] = sort(my_predictions,'descend');
for i=1:10
    j = ix(i);
    if i == 1
        fprintf('\nTop recommendations for you:\n');
    end
    fprintf('Predicting rating %.1f for movie %s\n', my_predictions(j), movieList{j});
end
