SAP ABAP 读取事务码变式内容

需求描述：根据事务码，读取指定变式中指定屏幕字段名的全部内容。

自己简单记录了一个可使用程序，复制粘贴可用。

*&---------------------------------------------------------------------*
*& Report ZSD_RPT_262
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zsd_rpt_262.
TYPES:BEGIN OF ty_output,
        sign   TYPE tvarv_sign,
        option TYPE tvarv_opti,
        low    TYPE rvari_val,
        high   TYPE rvari_val,
      END OF ty_output.
DATA:gt_output TYPE STANDARD TABLE OF ty_output.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.
  PARAMETERS: p_tcode TYPE tstc-tcode OBLIGATORY,
              p_vari  TYPE rsvar-variant OBLIGATORY,
              p_text  TYPE sychar30 OBLIGATORY.
SELECTION-SCREEN END OF BLOCK b1.

INITIALIZATION.
  CLEAR:gt_output.

START-OF-SELECTION.
  PERFORM frm_main.

*&---------------------------------------------------------------------*
*& Form frm_main
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_main .
  DATA:lv_pgmna    TYPE tstc-pgmna,
       lv_msg      TYPE string,
       lt_params   TYPE STANDARD TABLE OF vanz,
       lt_params_n TYPE STANDARD TABLE OF vanz,
       lt_selop    TYPE  STANDARD TABLE OF vanz,
       lt_selop_n  TYPE STANDARD TABLE OF vanz,
       lt_valutab  TYPE STANDARD TABLE OF rsparams,
       lt_valutab1 TYPE STANDARD TABLE OF rsparamsl,
       lt_objects  TYPE STANDARD TABLE OF vanz,
       lt_desc     TYPE STANDARD TABLE OF rsdynbrepi,
       lt_value    TYPE STANDARD TABLE OF rsseldyn,
       lt_obj      TYPE STANDARD TABLE OF rsvaridyn,
       lv_key      TYPE string VALUE 'D_SREPOVARI-EXTDREPORT=',  "固定关键字
       lv_pos      TYPE i,
       lv_end      TYPE i,
       lv_tcode    TYPE tcode.

  "拉取事务码对应程序ID
  SELECT SINGLE pgmna FROM tstc WHERE tcode = @p_tcode INTO @lv_pgmna.
  IF sy-subrc <> 0.
    MESSAGE '事务码无效，请检查！' TYPE 'S' DISPLAY LIKE 'E'.
    RETURN.
  ELSE.
    "若pgmna为空则去查 TSTCP（参数事务）
    IF lv_pgmna IS INITIAL.
      SELECT SINGLE param FROM tstcp WHERE tcode = @p_tcode INTO @DATA(lv_param).
      IF sy-subrc = 0.
        "解析参数里的目标事务码
        lv_pos = strlen( lv_key ).
        FIND lv_key IN lv_param MATCH OFFSET lv_pos.

        IF sy-subrc = 0.
          " 3. 从 = 号后开始截取，直到 ; 结束
          lv_pos += 23.
          lv_param = lv_param+lv_pos.
          FIND ';' IN lv_param MATCH OFFSET lv_end.
          IF sy-subrc = 0.
            lv_tcode = lv_param(lv_end).
            SELECT SINGLE pgmna FROM tstc WHERE tcode = @lv_tcode INTO @lv_pgmna.
          ENDIF.
        ENDIF.
      ENDIF.
    ENDIF.
  ENDIF.
  IF lv_pgmna IS INITIAL.
    MESSAGE '未找到事务码对应的程序名！' TYPE 'S' DISPLAY LIKE 'E'.
    RETURN.
  ENDIF.

  "读取事务码下变式的内容
  CALL FUNCTION 'RS_VARIANT_CONTENTS'
    EXPORTING
      report                = lv_pgmna
      variant               = p_vari
*     MOVE_OR_WRITE         = 'W'
*     NO_IMPORT             = ' '
*     EXECUTE_DIRECT        = ' '
*   IMPORTING
*     SP                    =
    TABLES
      l_params              = lt_params
      l_params_nonv         = lt_params_n
      l_selop               = lt_selop    "选择项目
      l_selop_nonv          = lt_selop_n
      valutab               = lt_valutab  "变式全部内容
      valutabl              = lt_valutab1
      objects               = lt_objects
      free_selections_desc  = lt_desc
      free_selections_value = lt_value
      free_selections_obj   = lt_obj
    EXCEPTIONS
      variant_non_existent  = 1
      variant_obsolete      = 2
      OTHERS                = 3.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
       INTO lv_msg WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    MESSAGE lv_msg TYPE 'S' DISPLAY LIKE 'E'.
    RETURN.
  ENDIF.

  "根据选择项目描述读取对应SELNAME
  READ TABLE lt_selop ASSIGNING FIELD-SYMBOL(<lfs_selop>) WITH KEY text = p_text.
  IF sy-subrc = 0.
    "仅保留需要读取的内容
    DELETE lt_valutab WHERE selname <> <lfs_selop>-name.
    IF lt_valutab IS NOT INITIAL.
      MOVE-CORRESPONDING lt_valutab TO gt_output.
      PERFORM frm_output.
    ELSE.
      MESSAGE '变式的选择项目下无内容输入！' TYPE 'S' DISPLAY LIKE 'E'.
    ENDIF.
  ELSE.
    MESSAGE '事务码下选择项目不存在，请检查！' TYPE 'S' DISPLAY LIKE 'E'.
  ENDIF.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form frm_output
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_output .
  DATA:lt_fieldcat TYPE lvc_t_fcat.
  DATA:lo_table TYPE REF TO data.
  DATA:lv_xstr TYPE xstring.
  DATA:lt_rawdata TYPE solix_tab.
  DATA:lo_result_data_table TYPE REF TO cl_salv_ex_result_data_table.
  DATA:lo_bs_ex_office2007 TYPE REF TO cl_salv_bs_ex_office2007.
  DATA:lv_version TYPE string.
  DATA:lv_flavour TYPE string.

*获取数据
  GET REFERENCE OF gt_output INTO lo_table.
*构造列字段
  PERFORM frm_create_fieldcat CHANGING lt_fieldcat.
*获取cl_salv_ex_result_data_table类对象
  lo_result_data_table = cl_salv_ex_util=>factory_result_data_table(
    r_data = lo_table
    t_fieldcatalog =  lt_fieldcat ).
  "获取xml版本信息
  lv_version = cl_salv_bs_a_xml_base=>get_version( ).
  IF lv_version = if_salv_bs_xml=>version_25.
    lv_version = if_salv_bs_xml=>version_25.
  ELSEIF lv_version = if_salv_bs_xml=>version_26.
    lv_version = if_salv_bs_xml=>version_26.
  ENDIF.
  lv_flavour = if_salv_bs_c_tt=>c_tt_xml_flavour_export.

*转换xstring
  cl_salv_bs_tt_util=>if_salv_bs_tt_util~transform(
    EXPORTING
      xml_version   = lv_version
      r_result_data = lo_result_data_table
      xml_type      = if_salv_bs_xml=>c_type_xlsx  " XML Type as SALV Constant
      xml_flavour   = lv_flavour
      gui_type      = if_salv_bs_xml=>c_gui_type_gui " Constant
    IMPORTING
      xml           = lv_xstr
   ).

  PERFORM frm_dialog_xml USING lv_xstr.
ENDFORM.

*&---------------------------------------------------------------------*
*& Form frm_create_fieldcat
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_create_fieldcat CHANGING it_fieldcat TYPE lvc_t_fcat.
  DATA:ls_fieldcat TYPE lvc_s_fcat.
  DEFINE def_field.
    CLEAR ls_fieldcat.
    ls_fieldcat-col_pos = &1.        "column position
    ls_fieldcat-fieldname = &2.
    ls_fieldcat-reptext = &3.
    APPEND ls_fieldcat TO it_fieldcat.
  END-OF-DEFINITION.

  def_field 1  'SIGN' '标识'.
  def_field 2  'OPTION' '选项'.
  def_field 3  'LOW' '最小值'.
  def_field 4  'HIGH' '最大值'.

ENDFORM.

*&---------------------------------------------------------------------*
*& Form frm_dialog_xml
*&---------------------------------------------------------------------*
*& 下载弹窗
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_dialog_xml USING iv_xml TYPE xstring.
  DATA:lv_extension TYPE string VALUE 'XLSX'.
  DATA:lv_directory TYPE string VALUE 'D:/'.
  DATA:lv_filename TYPE string.
  DATA:lv_mask TYPE string VALUE 'Excel (*.XLSX)|*.XLSX'.

  lv_filename = p_tcode && '_' && p_vari && '_' && p_text.
  CALL FUNCTION 'XML_EXPORT_DIALOG'
    EXPORTING
      i_xml                      = iv_xml
      i_default_extension        = lv_extension
      i_initial_directory        = lv_directory
      i_default_file_name        = lv_filename
      i_mask                     = lv_mask
*     I_APPLICATION              =
    EXCEPTIONS
      application_not_executable = 1
      OTHERS                     = 2.
  IF sy-subrc <> 0.
* Implement suitable error handling here
  ENDIF.
ENDFORM.

最后看一下执行效果：

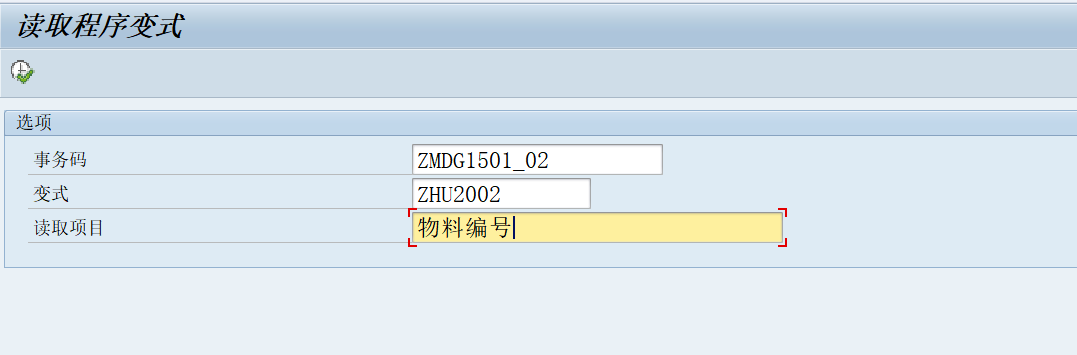

选择界面

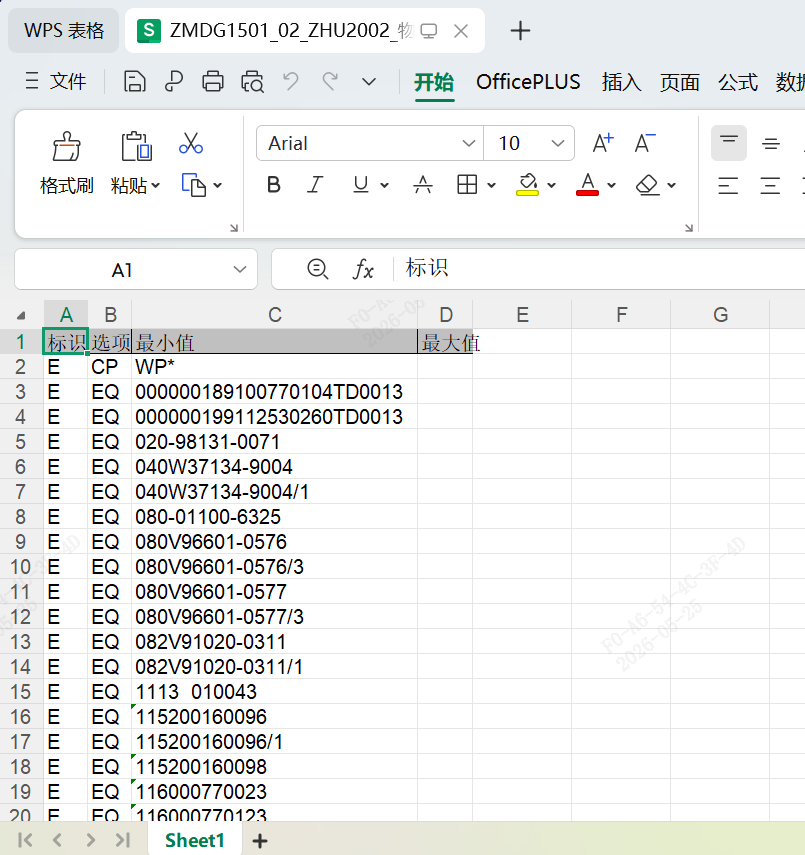

程序执行结束导出数据文件
