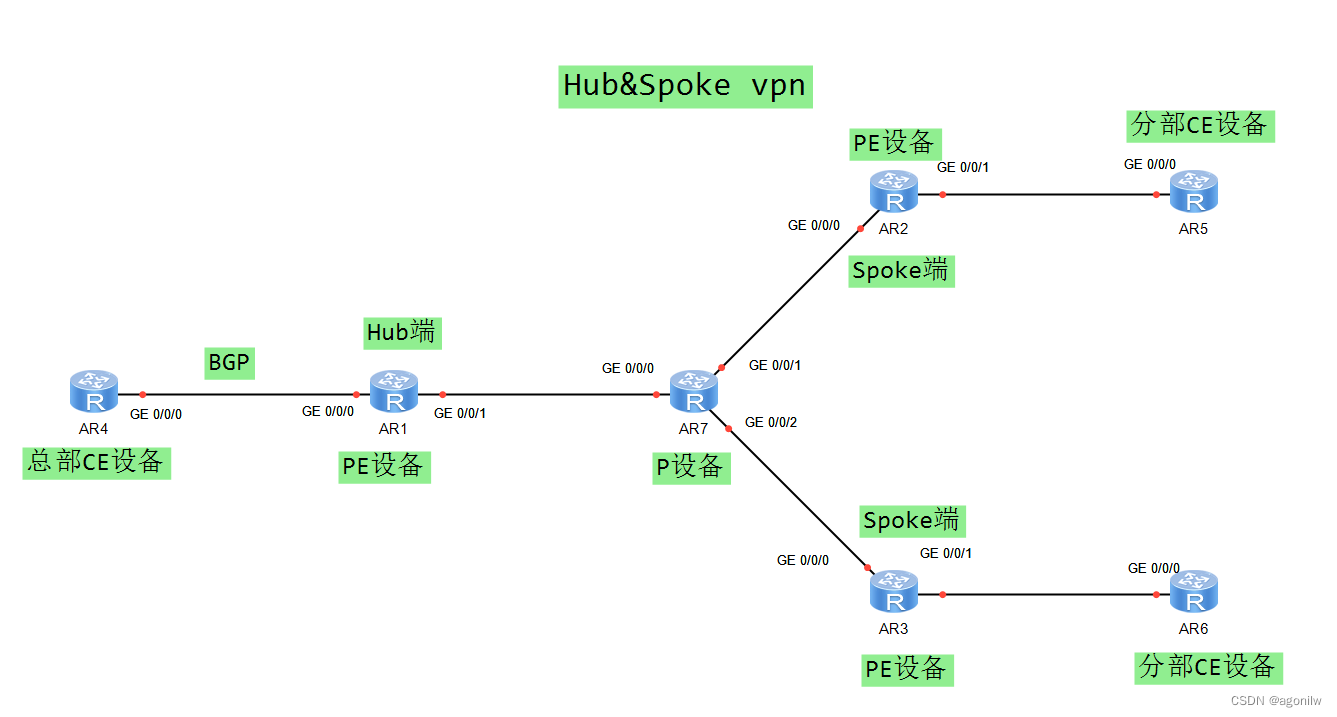

Hub&Spoke 实验

 配置：准备工作，先把运营商内网的连通性搞定，再来搞定MPLS，BGP，VPNV4，关闭VPNV4 RT的过滤器

[AR1]int LoopBack 0                                       ##创建环回口
[AR1-LoopBack0]ip address 1.1.1.1 32                      ##环回口配置地址
[AR1-LoopBack0]int g0/0/1
[AR1-GigabitEthernet0/0/1]ip address 17.1.1.1 24         ##接口配置地址
[AR1]ospf 10 router-id 1.1.1.1
[AR1-ospf-10]area 0
[AR1-ospf-10-area-0.0.0.0]network 1.1.1.1 0.0.0.0         ##宣告环回口
[AR1-ospf-10-area-0.0.0.0]network 17.1.1.1 0.0.0.0        ##宣告环回口
[AR1]mpls lsr-id 1.1.1.1                                  ##启用MPLS
[AR1]mpls
Info: Mpls starting, please wait... OK!
[AR1-mpls]mpls ldp
[AR1]int GigabitEthernet 0/0/1
[AR1-GigabitEthernet0/0/1]mpls ldp

[AR2]int LoopBack 0                                       ##创建环回口
[AR2-LoopBack0]ip add 2.2.2.2 32                          ##环回口配置地址
[AR2-LoopBack0]int g0/0/0
[AR2-GigabitEthernet0/0/0]ip address 27.1.1.2 24          ##接口配置地址
[AR2]mpls lsr-id 2.2.2.2
[AR2]mpls
Info: Mpls starting, please wait... OK!
[AR2-mpls]mpls ldp
[AR2]int GigabitEthernet 0/0/0
[AR2-GigabitEthernet0/0/0]mpls
[AR2-GigabitEthernet0/0/0]mpls ldp
[AR2]ospf 10 router-id 2.2.2.2                            ##启用MPLS
[AR2-ospf-10]area 0
[AR2-ospf-10-area-0.0.0.0]network 2.2.2.2 0.0.0.0         ##宣告环回口
[AR2-ospf-10-area-0.0.0.0]network 27.1.1.2 0.0.0.0        ##宣告环回口

[AR3]interface LoopBack 0
[AR3-LoopBack0]ip address 3.3.3.3 32
[AR3-LoopBack0]int g0/0/0
[AR3-GigabitEthernet0/0/0]ip address 37.1.1.3 24
[AR3]mpls lsr-id 3.3.3.3
[AR3]mpls
Info: Mpls starting, please wait... OK!
[AR3-mpls]mpls ldp
[AR3]ospf 10 router-id 3.3.3.3
[AR3-ospf-10]area 0
[AR3-ospf-10-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[AR3-ospf-10-area-0.0.0.0]network 37.1.1.3 0.0.0.0
[AR3]interface g0/0/0
[AR3-GigabitEthernet0/0/0]mpls
[AR3-GigabitEthernet0/0/0]mpls ldp

[AR7]interface LoopBack 0
[AR7-LoopBack0]ip address 7.7.7.7 32
[AR7-LoopBack0]int g0/0/0
[AR7-GigabitEthernet0/0/0]ip address 17.1.1.7 24
[AR7-GigabitEthernet0/0/0]int g0/0/1
[AR7-GigabitEthernet0/0/1]ip address 27.1.1.7 24
[AR7-GigabitEthernet0/0/1]int g0/0/2
[AR7-GigabitEthernet0/0/2]ip address 37.1.1.7 24
[AR7]mpls lsr-id 7.7.7.7
[AR7]mpls
Info: Mpls starting, please wait... OK!
[AR7-mpls]mpls ldp
[AR7]int GigabitEthernet 0/0/0
[AR7-GigabitEthernet0/0/0]mpls
[AR7-GigabitEthernet0/0/0]mpls ldp
[AR7-GigabitEthernet0/0/0]int GigabitEthernet 0/0/1
[AR7-GigabitEthernet0/0/1]mpls
[AR7-GigabitEthernet0/0/1]mpls ldp
[AR7-GigabitEthernet0/0/1]int GigabitEthernet 0/0/2
[AR7-GigabitEthernet0/
