springboot2.x实现多数据源请求

在一个项目中有多个数据源（不同库jdbc) ，同时在一个服务中需要调用多个数据库的时候，就需要采用多数据源的方式来实现，数据的获取：

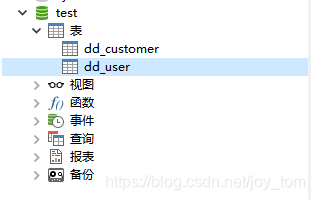

第一步：创建二个数据库
数据库一：test1
数据库二：test2
二个数据库中建立相同的表

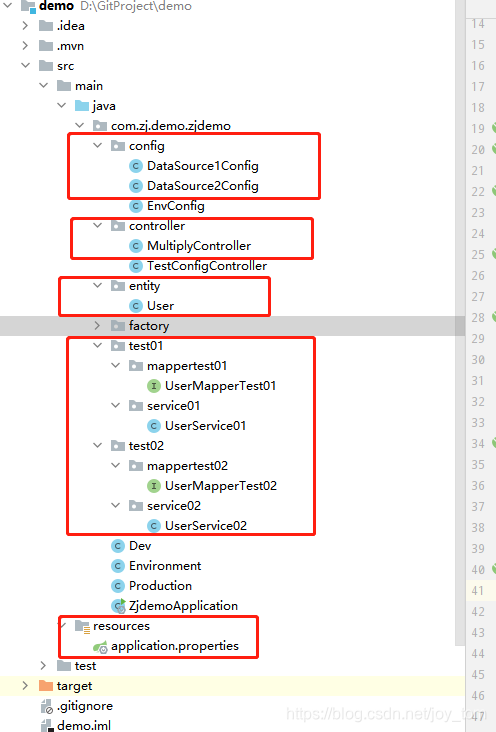

项目的目录结构：

根据不同的包名连接不同的数据源，实现数据源的分离：
这是项目需要引入maven包

 <dependencies>
        <!-- web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.1.1</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

application.properties文件的配置：

###datasource1--master
spring.datasource.test1.driver-class-name = com.mysql.jdbc.Driver
spring.datasource.test1.jdbc-url = jdbc:mysql://192.168.0.75:3339/test?characterEncoding=utf8&useUnicode=true&useSSL=true&serverTimezone=UTC
spring.datasource.test1.username = root
spring.datasource.test1.password = 123456
###datasource2--slavel
spring.datasource.test2.driver-class-name = com.mysql.jdbc.Driver
spring.datasource.test2.jdbc-url = jdbc:mysql://192.168.0.75:3340/test?characterEncoding=utf8&useUnicode=true&useSSL=true&serverTimezone=UTC
spring.datasource.test2.username = root
spring.datasource.test2.password = 123456

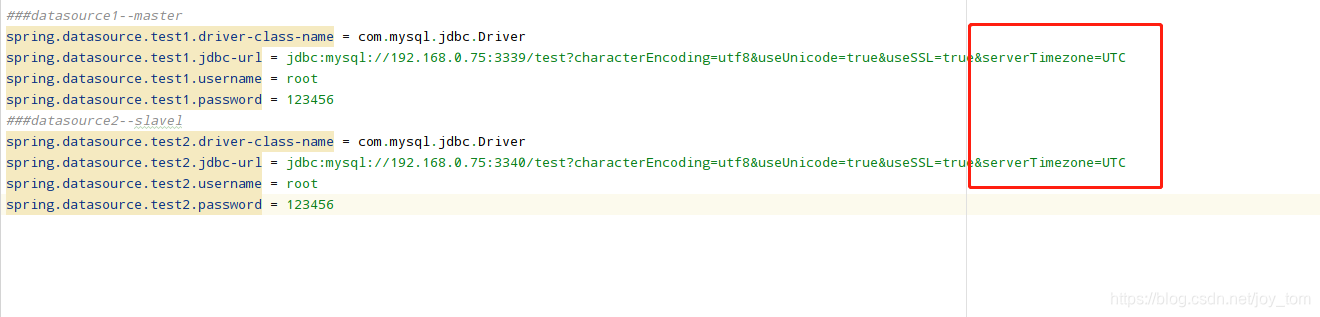

这里需要注意的地方是数据源需要配置：

解决MySQL的版本问题和时区问题

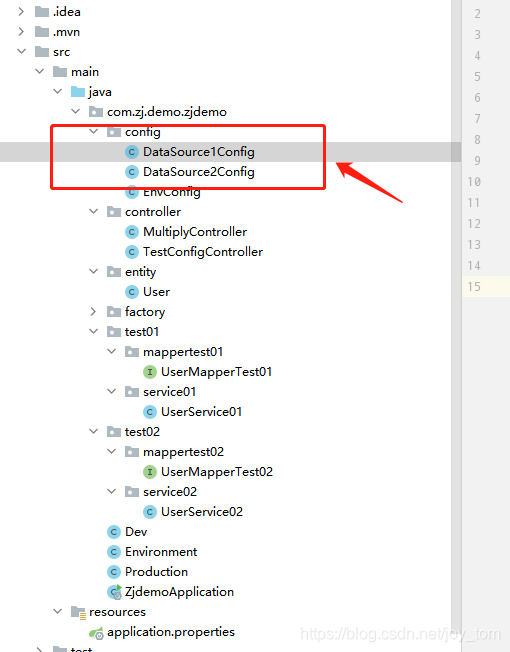

开始配置数据源的config文件：

几个数据源配置几个config，各个数据源进行分离，互相不影响
datasouce1Config代码：

package com.zj.demo.zjdemo.config;

/**
 * 数据源（主）
 * @Author: zj
 * @Description: DataSource1Config
 * @Date: 2020/11/17 0017 下午 16:31
 * @Version: 1.0
 */
import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

/**
 * 主库
 */
//DataSource01数据源的读取
@Configuration // 注册到springboot容器中
@MapperScan(basePackages = "com.zj.demo.zjdemo.test01", sqlSessionFactoryRef = "test1SqlSessionFactory")
//这个里的basePackages中配置的包指向mapper的包
//指向了下面的名为 test1SqlSessionFactory 的工厂
public class DataSource1Config {

    @Bean(name = "test1DataSource")  //表示注入到Spring 容器中去
    @ConfigurationProperties(prefix = "spring.datasource.test1")  //表以此为开头，去properties去读 （ 后面是写死的）
    @Primary
    public DataSource testDataSource() {
        return DataSourceBuilder.create().build();
    }


    @Bean(name = "test1SqlSessionFactory") //
    @Primary
    public SqlSessionFactory testSqlSessionFactory(@Qualifier("test1DataSource") DataSource dataSource)
            throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        // bean.setMapperLocations(
        // new
        // PathMatchingResourcePatternResolver().getResources("classpath:mybatis/mapper/test1/*.xml"));
        // 如果有一些mapper文件的话 可以把上面的注解放开
        return bean.getObject();
    }


    @Bean(name = "test1TransactionManager")  //配置事务
    @Primary
    public DataSourceTransactionManager testTransactionManager(@Qualifier("test1DataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean(name = "test1SqlSessionTemplate")
    @Primary
    public SqlSessionTemplate testSqlSessionTemplate(
            @Qualifier("test1SqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }

}

datasouce2Config代码：

package com.zj.demo.zjdemo.config;
import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

//DataSource2
@Configuration // 注册到springboot容器中
@MapperScan(basePackages = "com.zj.demo.zjdemo.test02", sqlSessionFactoryRef = "test2SqlSessionFactory")
public class DataSource2Config {


    @Bean(name = "test2DataSource")
    @ConfigurationProperties(prefix = "spring.datasource.test2")
    public DataSource testDataSource() {
        return DataSourceBuilder.create().build();
    }


    @Bean(name = "test2SqlSessionFactory")
    public SqlSessionFactory testSqlSessionFactory(@Qualifier("test2DataSource") DataSource dataSource)
            throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        // bean.setMapperLocations(
        // new
        // PathMatchingResourcePatternResolver().getResources("classpath:mybatis/mapper/test2/*.xml"));
        return bean.getObject();
    }


    @Bean(name = "test2TransactionManager")
    public DataSourceTransactionManager testTransactionManager(@Qualifier("test2DataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean(name = "test2SqlSessionTemplate")
    public SqlSessionTemplate testSqlSessionTemplate(
            @Qualifier("test2SqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }

}

对应的实体类如下：

package com.zj.demo.zjdemo.entity;

import lombok.Data;

/**
 * @ProjectName: zjdemo
 * @Package: com.zj.demo.zjdemo.entity
 * @ClassName: User
 * @Author: zj
 * @Description: User
 * @Date: 2020/11/17 0017 下午 16:47
 * @Version: 1.0
 */
@Data
public class User {
    private Integer age;
    private String name;
    private  Integer id;

}

mappertest01和mappertest02如下：

package com.zj.demo.zjdemo.test01.mappertest01;

import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

import java.util.List;
import java.util.Map;

/**
 * @ProjectName: zjdemo
 * @Package: com.zj.demo.zjdemo.test01.mappertest01
 * @ClassName: UserMapperTest01
 * @Author: zj
 * @Description: UserMapperTest01
 * @Date: 2020/11/17 0017 下午 16:49
 * @Version: 1.0
 */
public interface UserMapperTest01 {
    @Insert("insert into dd_user values(null,#{name},#{age});")
    public int insert(@Param("name") String name, @Param("age") Integer age);
}

和

package com.zj.demo.zjdemo.test02.mappertest02;

import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

import java.util.List;
import java.util.Map;

/**
 * @ProjectName: zjdemo
 * @Package: com.zj.demo.zjdemo.test02.mappertest02
 * @ClassName: UserMapperTest02
 * @Author: zj
 * @Description: UserMapperTest02
 * @Date: 2020/11/17 0017 下午 16:49
 * @Version: 1.0
 */
public interface UserMapperTest02 {
	//插入
    @Insert("insert into dd_user values(null,#{name},#{age});")
    public int insert(@Param("name") String name, @Param("age") Integer age);

	//查询
    @Select("select * from dd_user;")
    List<Map<String, Object>> queryList();
}

service1和service2如下：

package com.zj.demo.zjdemo.test01.service01;

import com.zj.demo.zjdemo.test01.mappertest01.UserMapperTest01;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;

/**
 * @ProjectName: zjdemo
 * @Package: com.zj.demo.zjdemo.test01.service01
 * @ClassName: UserService01
 * @Author: zj
 * @Description: UserService01
 * @Date: 2020/11/17 0017 下午 16:50
 * @Version: 1.0
 */
@Service
@Slf4j
public class UserService01 {
    @Autowired
    private UserMapperTest01 userMapperTest01;

    public int insertUser(String name, Integer age){
        int result = userMapperTest01.insert(name, age);
        log.info("####################",result);
        return result;
    }
}

和

package com.zj.demo.zjdemo.test02.service02;

import com.zj.demo.zjdemo.test02.mappertest02.UserMapperTest02;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;

/**
 * @ProjectName: zjdemo
 * @Package: com.zj.demo.zjdemo.test02.service02
 * @ClassName: UserService02
 * @Author: zj
 * @Description: UserService02
 * @Date: 2020/11/17 0017 下午 16:51
 * @Version: 1.0
 */
@Service
@Slf4j
public class UserService02 {
    @Autowired
    private UserMapperTest02 userMapperTest02;

    public int insertUser(String name, Integer age){
        int result = userMapperTest02.insert(name, age);
        log.info("####################",result);
        return result;
    }

    public List<Map<String,Object>> queryList() {
        return userMapperTest02.queryList();
    }
}

controler类：

package com.zj.demo.zjdemo.controller;
import com.zj.demo.zjdemo.test01.service01.UserService01;
import com.zj.demo.zjdemo.test02.service02.UserService02;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * 多数据源处理类
 * @Author: zj
 * @Date: 2020/11/17 0017 下午 16:51
 * @Version: 1.0
 */
@RestController
public class MultiplyController {
    @Autowired
    private UserService01 userService01;

    @Autowired
    private UserService02 userService02;

    @RequestMapping("/insertUser01")
    public Integer insertUser1(String name, Integer age){

        return userService01.insertUser(name, age);
    }

    @RequestMapping("/insertUser02")
    public Integer insertUser2(String name, Integer age){

        return userService02.insertUser(name, age);
    }

    @RequestMapping("/insertOrQuery")
    public List<Map<String, Object>> insertOrQuery(String name, Integer age){
        List<Map<String, Object>> list = new ArrayList<Map<String, Object>>();
        Integer n = userService01.insertUser(name, age);
        if (n>0){
            list = userService02.queryList();
        }
        return list;
    }
}

application启动类：

package com.zj.demo.zjdemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;

/**
 * 多数据源启动类
 * @author zj
 */
@SpringBootApplication(scanBasePackages={"com.zj.demo.zjdemo.*"})
public class ZjdemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(ZjdemoApplication.class, args);
        System.out.println(" run to ZjdemoApplication success !");
    }
}

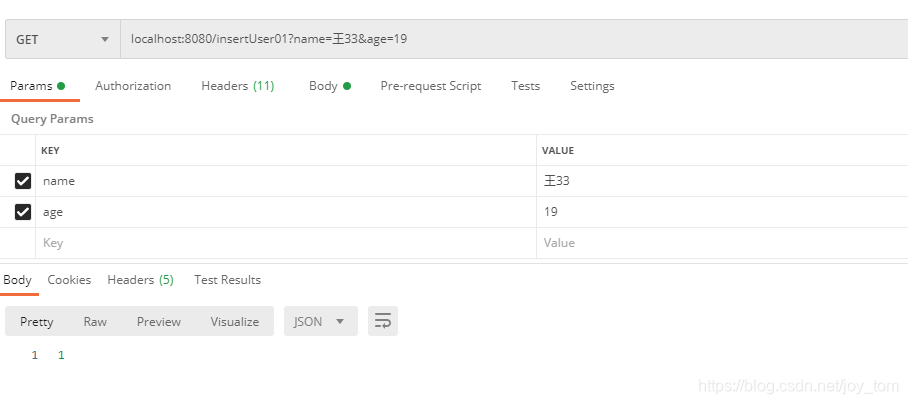

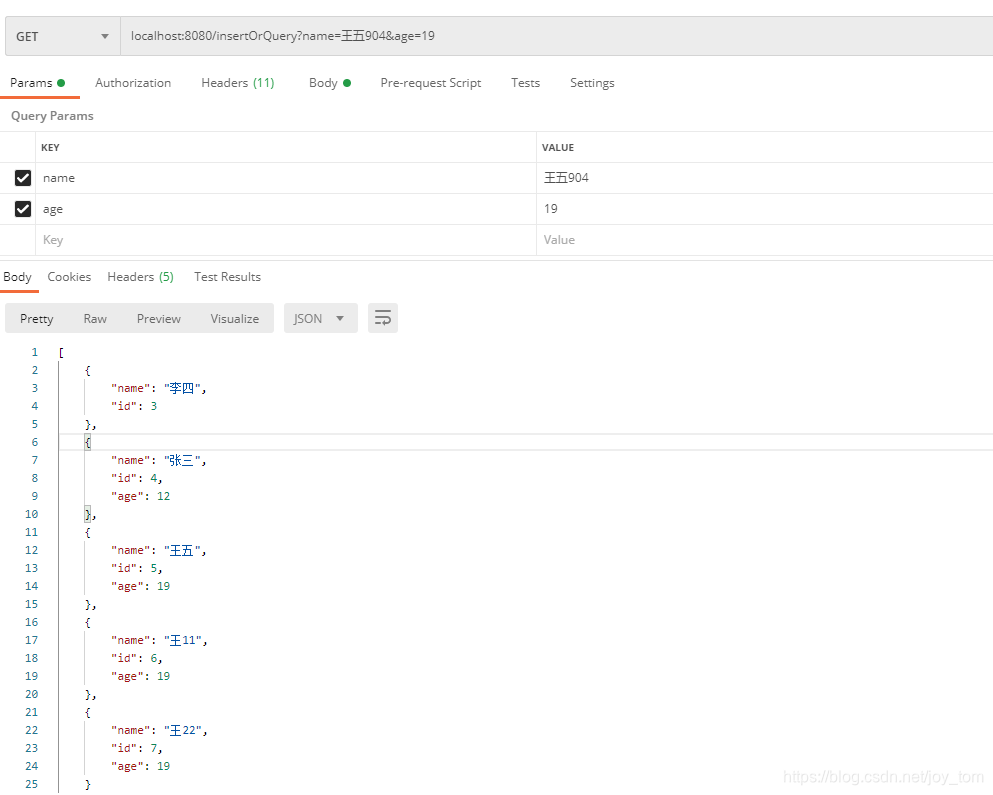

测试结果：

数据库插入结果：



该案列是为了达到一个服务下请求多个数据源（插入，查询）
