uboot启动流程分析(1)

学习目标：

uboot启动流程分析(1)

学习内容：

学习时间：

2022-07-22

学习产出：

uboot函数的入口是arch/arm/lib/vectors.S中的_start函数，部分源码如下：

_start:

#ifdef CONFIG_SYS_DV_NOR_BOOT_CFG
	.word	CONFIG_SYS_DV_NOR_BOOT_CFG
#endif

	b	reset
	ldr	pc, _undefined_instruction
	ldr	pc, _software_interrupt
	ldr	pc, _prefetch_abort
	ldr	pc, _data_abort
	ldr	pc, _not_used
	ldr	pc, _irq
	ldr	pc, _fiq

此函数设置中断向量表，跳转到reset函数，此函数位于arch/arm/cpu/armv7/start.S文件中，部分源码如下：

	.globl	reset
	.globl	save_boot_params_ret

reset:
	/* Allow the board to save important registers */
	b	save_boot_params

在reset函数中又跳转到了save_boot_params_ret函数中，此函数也在本文件中，函数如下：

ENTRY(save_boot_params)
	b	save_boot_params_ret		@ back to my caller

此函数中又跳转到了save_boot_params_ret函数，此函数也位于本文件中，函数源码如下：

save_boot_params_ret:
	/*
	 * disable interrupts (FIQ and IRQ), also set the cpu to SVC32 mode,
	 * except if in HYP mode already
	 */
	mrs	r0, cpsr
	and	r1, r0, #0x1f		@ mask mode bits
	teq	r1, #0x1a		@ test for HYP mode
	bicne	r0, r0, #0x1f		@ clear all mode bits
	orrne	r0, r0, #0x13		@ set SVC mode
	orr	r0, r0, #0xc0		@ disable FIQ and IRQ
	msr	cpsr,r0

/*
 * Setup vector:
 * (OMAP4 spl TEXT_BASE is not 32 byte aligned.
 * Continue to use ROM code vector only in OMAP4 spl)
 */
#if !(defined(CONFIG_OMAP44XX) && defined(CONFIG_SPL_BUILD))
	/* Set V=0 in CP15 SCTLR register - for VBAR to point to vector */
	mrc	p15, 0, r0, c1, c0, 0	@ Read CP15 SCTLR Register
	bic	r0, #CR_V		@ V = 0
	mcr	p15, 0, r0, c1, c0, 0	@ Write CP15 SCTLR Register

	/* Set vector address in CP15 VBAR register */
	ldr	r0, =_start
	mcr	p15, 0, r0, c12, c0, 0	@Set VBAR
#endif

	/* the mask ROM code should have PLL and others stable */
#ifndef CONFIG_SKIP_LOWLEVEL_INIT
	bl	cpu_init_cp15
	bl	cpu_init_crit
#endif

	bl	_main

首先设置cpsr寄存的值，使处理器进入FIQ和IRQ中断，然后设置处理器进入SVC32模式。接下来读取CP15中c1寄存器的值到r0寄存器中，也就是读取SCTLR寄存器的值，清楚V位，使能中断向量表重定位，将r0的值设置为_start函数的地址，写入到cp15的c12寄存器，这样就完成了重新定位中断向量表的地址为0x87800000。
继续向下执行，cpu_init_cp15函数，在本文件内有定义，此函数源码为：

ENTRY(cpu_init_cp15)
	/*
	 * Invalidate L1 I/D
	 */
	mov	r0, #0			@ set up for MCR
	mcr	p15, 0, r0, c8, c7, 0	@ invalidate TLBs
	mcr	p15, 0, r0, c7, c5, 0	@ invalidate icache
	mcr	p15, 0, r0, c7, c5, 6	@ invalidate BP array
	mcr     p15, 0, r0, c7, c10, 4	@ DSB
	mcr     p15, 0, r0, c7, c5, 4	@ ISB

	/*
	 * disable MMU stuff and caches
	 */
	mrc	p15, 0, r0, c1, c0, 0
	bic	r0, r0, #0x00002000	@ clear bits 13 (--V-)
	bic	r0, r0, #0x00000007	@ clear bits 2:0 (-CAM)
	orr	r0, r0, #0x00000002	@ set bit 1 (--A-) Align
	orr	r0, r0, #0x00000800	@ set bit 11 (Z---) BTB
#ifdef CONFIG_SYS_ICACHE_OFF
	bic	r0, r0, #0x00001000	@ clear bit 12 (I) I-cache
#else
	orr	r0, r0, #0x00001000	@ set bit 12 (I) I-cache
#endif
	mcr	p15, 0, r0, c1, c0, 0

#ifdef CONFIG_ARM_ERRATA_716044
	mrc	p15, 0, r0, c1, c0, 0	@ read system control register
	orr	r0, r0, #1 << 11	@ set bit #11
	mcr	p15, 0, r0, c1, c0, 0	@ write system control register
#endif

#if (defined(CONFIG_ARM_ERRATA_742230) || defined(CONFIG_ARM_ERRATA_794072))
	mrc	p15, 0, r0, c15, c0, 1	@ read diagnostic register
	orr	r0, r0, #1 << 4		@ set bit #4
	mcr	p15, 0, r0, c15, c0, 1	@ write diagnostic register
#endif

#ifdef CONFIG_ARM_ERRATA_743622
	mrc	p15, 0, r0, c15, c0, 1	@ read diagnostic register
	orr	r0, r0, #1 << 6		@ set bit #6
	mcr	p15, 0, r0, c15, c0, 1	@ write diagnostic register
#endif

#ifdef CONFIG_ARM_ERRATA_751472
	mrc	p15, 0, r0, c15, c0, 1	@ read diagnostic register
	orr	r0, r0, #1 << 11	@ set bit #11
	mcr	p15, 0, r0, c15, c0, 1	@ write diagnostic register
#endif
#ifdef CONFIG_ARM_ERRATA_761320
	mrc	p15, 0, r0, c15, c0, 1	@ read diagnostic register
	orr	r0, r0, #1 << 21	@ set bit #21
	mcr	p15, 0, r0, c15, c0, 1	@ write diagnostic register
#endif
#ifdef CONFIG_ARM_ERRATA_845369
	mrc	p15, 0, r0, c15, c0, 1	@ read diagnostic register
	orr	r0, r0, #1 << 22	@ set bit #22
	mcr	p15, 0, r0, c15, c0, 1	@ write diagnostic register
#endif

	mov	r5, lr			@ Store my Caller
	mrc	p15, 0, r1, c0, c0, 0	@ r1 has Read Main ID Register (MIDR)
	mov	r3, r1, lsr #20		@ get variant field
	and	r3, r3, #0xf		@ r3 has CPU variant
	and	r4, r1, #0xf		@ r4 has CPU revision
	mov	r2, r3, lsl #4		@ shift variant field for combined value
	orr	r2, r4, r2		@ r2 has combined CPU variant + revision

#ifdef CONFIG_ARM_ERRATA_798870
	cmp	r2, #0x30		@ Applies to lower than R3p0
	bge	skip_errata_798870      @ skip if not affected rev
	cmp	r2, #0x20		@ Applies to including and above R2p0
	blt	skip_errata_798870      @ skip if not affected rev

	mrc	p15, 1, r0, c15, c0, 0  @ read l2 aux ctrl reg
	orr	r0, r0, #1 << 7         @ Enable hazard-detect timeout
	push	{r1-r5}			@ Save the cpu info registers
	bl	v7_arch_cp15_set_l2aux_ctrl
	isb				@ Recommended ISB after l2actlr update
	pop	{r1-r5}			@ Restore the cpu info - fall through
skip_errata_798870:
#endif

#ifdef CONFIG_ARM_ERRATA_801819
	cmp	r2, #0x24		@ Applies to lt including R2p4
	bgt	skip_errata_801819      @ skip if not affected rev
	cmp	r2, #0x20		@ Applies to including and above R2p0
	blt	skip_errata_801819      @ skip if not affected rev
	mrc	p15, 0, r0, c0, c0, 6	@ pick up REVIDR reg
	and	r0, r0, #1 << 3		@ check REVIDR[3]
	cmp	r0, #1 << 3
	beq	skip_errata_801819	@ skip erratum if REVIDR[3] is set

	mrc	p15, 0, r0, c1, c0, 1	@ read auxilary control register
	orr	r0, r0, #3 << 27	@ Disables streaming. All write-allocate
					@ lines allocate in the L1 or L2 cache.
	orr	r0, r0, #3 << 25	@ Disables streaming. All write-allocate
					@ lines allocate in the L1 cache.
	push	{r1-r5}			@ Save the cpu info registers
	bl	v7_arch_cp15_set_acr
	pop	{r1-r5}			@ Restore the cpu info - fall through
skip_errata_801819:
#endif

#ifdef CONFIG_ARM_ERRATA_454179
	cmp	r2, #0x21		@ Only on < r2p1
	bge	skip_errata_454179

	mrc	p15, 0, r0, c1, c0, 1	@ Read ACR
	orr	r0, r0, #(0x3 << 6)	@ Set DBSM(BIT7) and IBE(BIT6) bits
	push	{r1-r5}			@ Save the cpu info registers
	bl	v7_arch_cp15_set_acr
	pop	{r1-r5}			@ Restore the cpu info - fall through

skip_errata_454179:
#endif

#ifdef CONFIG_ARM_ERRATA_430973
	cmp	r2, #0x21		@ Only on < r2p1
	bge	skip_errata_430973

	mrc	p15, 0, r0, c1, c0, 1	@ Read ACR
	orr	r0, r0, #(0x1 << 6)	@ Set IBE bit
	push	{r1-r5}			@ Save the cpu info registers
	bl	v7_arch_cp15_set_acr
	pop	{r1-r5}			@ Restore the cpu info - fall through

skip_errata_430973:
#endif

#ifdef CONFIG_ARM_ERRATA_621766
	cmp	r2, #0x21		@ Only on < r2p1
	bge	skip_errata_621766

	mrc	p15, 0, r0, c1, c0, 1	@ Read ACR
	orr	r0, r0, #(0x1 << 5)	@ Set L1NEON bit
	push	{r1-r5}			@ Save the cpu info registers
	bl	v7_arch_cp15_set_acr
	pop	{r1-r5}			@ Restore the cpu info - fall through

skip_errata_621766:
#endif

	mov	pc, r5			@ back to my caller
ENDPROC(cpu_init_cp15)

此函数主要用来设置cp15寄存器相关的，如关闭MMU。
继续执行cpu_init_crit函数，此函数也在本文件中定义，函数如下：

ENTRY(cpu_init_crit)
	/*
	 * Jump to board specific initialization...
	 * The Mask ROM will have already initialized
	 * basic memory. Go here to bump up clock rate and handle
	 * wake up conditions.
	 */
	b	lowlevel_init		@ go setup pll,mux,memory
ENDPROC(cpu_init_crit)

此函数中跳转到lowlevel_init中。
lowlevel_init函数位于 arch/arm/cpu/armv7/lowlevel_init.S中，内容如下：

ENTRY(lowlevel_init)
	/*
	 * Setup a temporary stack. Global data is not available yet.
	 */
	ldr	sp, =CONFIG_SYS_INIT_SP_ADDR
	bic	sp, sp, #7 /* 8-byte alignment for ABI compliance */
#ifdef CONFIG_SPL_DM
	mov	r9, #0
#else
	/*
	 * Set up global data for boards that still need it. This will be
	 * removed soon.
	 */
#ifdef CONFIG_SPL_BUILD
	ldr	r9, =gdata
#else
	sub	sp, sp, #GD_SIZE
	bic	sp, sp, #7
	mov	r9, sp
#endif
#endif
	/*
	 * Save the old lr(passed in ip) and the current lr to stack
	 */
	push	{ip, lr}

	/*
	 * Call the very early init function. This should do only the
	 * absolute bare minimum to get started. It should not:
	 *
	 * - set up DRAM
	 * - use global_data
	 * - clear BSS
	 * - try to start a console
	 *
	 * For boards with SPL this should be empty since SPL can do all of
	 * this init in the SPL board_init_f() function which is called
	 * immediately after this.
	 */
	bl	s_init
	pop	{ip, pc}
ENDPROC(lowlevel_init)

首先设置sp的值为CONFIG_SYS_INIT_SP_ADDR，此定义位于include/configs/mx6ullevk.h文件中，定义如下：

#define CONFIG_SYS_INIT_RAM_ADDR	IRAM_BASE_ADDR
#define CONFIG_SYS_INIT_RAM_SIZE	IRAM_SIZE

#define CONFIG_SYS_INIT_SP_OFFSET \
	(CONFIG_SYS_INIT_RAM_SIZE - GENERATED_GBL_DATA_SIZE)
#define CONFIG_SYS_INIT_SP_ADDR \
	(CONFIG_SYS_INIT_RAM_ADDR + CONFIG_SYS_INIT_SP_OFFSET)

要知道CONFIG_SYS_INIT_SP_ADDR 的值需要知道CONFIG_SYS_INIT_RAM_ADDR 和CONFIG_SYS_INIT_SP_OFFSET的值。而要知道这两个的值，需要知道IRAM_BASE_ADDR和IRAM_SIZE的值，这两个值在文件arch/arm/include/asm/arch-mx6/imx-regs.h中有如下定义，其实就是 IMX6UL/IM6ULL 内部 ocram 的首地址和大小：

#define IRAM_BASE_ADDR			0x00900000
#define IRAM_SIZE               0x00020000

此外还需要知道GENERATED_GBL_DATA_SIZE的值，此值在文件在文件include/generated/generic-asm-offsets.h中有定义：

#define GENERATED_GBL_DATA_SIZE 256 /* (sizeof(struct global_data) + 15) & ~15	@ */
#define GENERATED_BD_INFO_SIZE 80 /* (sizeof(struct bd_info) + 15) & ~15	@ */
#define GD_SIZE 248 /* sizeof(struct global_data)	@ */
#define GD_BD 0 /* offsetof(struct global_data, bd)	@ */
#define GD_MALLOC_BASE 192 /* offsetof(struct global_data, malloc_base)	@ */
#define GD_RELOCADDR 48 /* offsetof(struct global_data, relocaddr)	@ */
#define GD_RELOC_OFF 68 /* offsetof(struct global_data, reloc_off)	@ */
#define GD_START_ADDR_SP 64 /* offsetof(struct global_data, start_addr_sp)	@ */

综上所述，

CONFIG_SYS_INIT_SP_ADDR = CONFIG_SYS_INIT_RAM_ADDR + CONFIG_SYS_INIT_SP_OFFSET =
 CONFIG_SYS_INIT_RAM_ADDR +  CONFIG_SYS_INIT_RAM_SIZE - GENERATED_GBL_DATA_SIZE =
 IRAM_BASE_ADDR + IRAM_SIZE - GENERATED_GBL_DATA_SIZE =
  0x00900000 + 0x00020000 - 256 =   0X0091FF00

CONFIG_SYS_INIT_SP_OFFSET = 0x00020000 – 256 = 0x1FF00。
CONFIG_SYS_INIT_SP_ADDR = 0x00900000 + 0X1FF00 = 0X0091FF00，

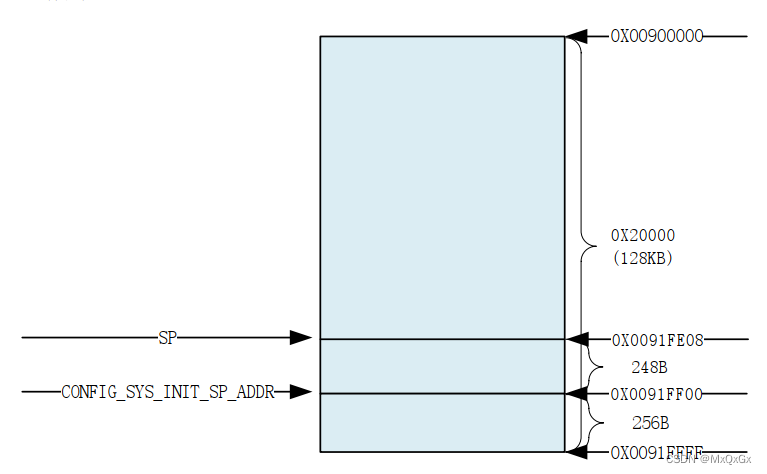

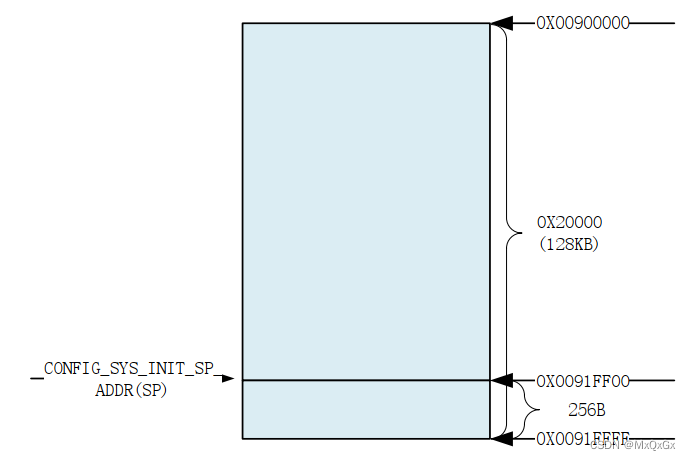

如下图所示

此时 sp 指向 0X91FF00，这属于 IMX6UL/IMX6ULL 的内部 ram。
继续回到lowlevel_init函数中，对sp进行8字节对齐，然后sp 指针减去 GD_SIZE， GD_SIZE 同样在 generic-asm-offsets.h 中定了，大小为248，对 sp 做 8 字节对齐，此时 sp 的地址为 0X0091FF00-248=0X0091FE08，此时 sp 位置如图所示：

接下来将 sp 地址保存在 r9 寄存器中，将 ip 和 lr 压栈，调用函数 s_init，执行完后将入栈的 ip 和 lr 进行出栈，并将 lr 赋给 pc。
s_init函数在文件arch/arm/cpu/armv7/mx6/soc.c中定义，如下所示：

void s_init(void)
{
	struct anatop_regs *anatop = (struct anatop_regs *)ANATOP_BASE_ADDR;
	struct mxc_ccm_reg *ccm = (struct mxc_ccm_reg *)CCM_BASE_ADDR;
	u32 mask480;
	u32 mask528;
	u32 reg, periph1, periph2;

	if (is_cpu_type(MXC_CPU_MX6SX) || is_cpu_type(MXC_CPU_MX6UL) ||
	    is_cpu_type(MXC_CPU_MX6ULL) || is_cpu_type(MXC_CPU_MX6SLL))
		return;

	/* Due to hardware limitation, on MX6Q we need to gate/ungate all PFDs
	 * to make sure PFD is working right, otherwise, PFDs may
	 * not output clock after reset, MX6DL and MX6SL have added 396M pfd
	 * workaround in ROM code, as bus clock need it
	 */

	mask480 = ANATOP_PFD_CLKGATE_MASK(0) |
		ANATOP_PFD_CLKGATE_MASK(1) |
		ANATOP_PFD_CLKGATE_MASK(2) |
		ANATOP_PFD_CLKGATE_MASK(3);
	mask528 = ANATOP_PFD_CLKGATE_MASK(1) |
		ANATOP_PFD_CLKGATE_MASK(3);

	reg = readl(&ccm->cbcmr);
	periph2 = ((reg & MXC_CCM_CBCMR_PRE_PERIPH2_CLK_SEL_MASK)
		>> MXC_CCM_CBCMR_PRE_PERIPH2_CLK_SEL_OFFSET);
	periph1 = ((reg & MXC_CCM_CBCMR_PRE_PERIPH_CLK_SEL_MASK)
		>> MXC_CCM_CBCMR_PRE_PERIPH_CLK_SEL_OFFSET);

	/* Checking if PLL2 PFD0 or PLL2 PFD2 is using for periph clock */
	if ((periph2 != 0x2) && (periph1 != 0x2))
		mask528 |= ANATOP_PFD_CLKGATE_MASK(0);

	if ((periph2 != 0x1) && (periph1 != 0x1) &&
		(periph2 != 0x3) && (periph1 != 0x3))
		mask528 |= ANATOP_PFD_CLKGATE_MASK(2);

	writel(mask480, &anatop->pfd_480_set);
	writel(mask528, &anatop->pfd_528_set);
	writel(mask480, &anatop->pfd_480_clr);
	writel(mask528, &anatop->pfd_528_clr);
}

会判断当前 CPU 类型，如果 CPU 为 MX6SX、 MX6UL、 MX6ULL 或 MX6SLL中 的 任 意 一 种 ， 那 么 就 会 直 接 返 回 ， 相 当 于 s_init 函 数 什 么 都 没 做 。 所 以 对 于
I.MX6UL/I.MX6ULL 来说， s_init 就是个空函数。从 s_init 函数退出以后进入函数 lowlevel_init，
但是 lowlevel_init 函数也执行完成了，返回到了函数 cpu_init_crit，函数 cpu_init_crit 也执行完

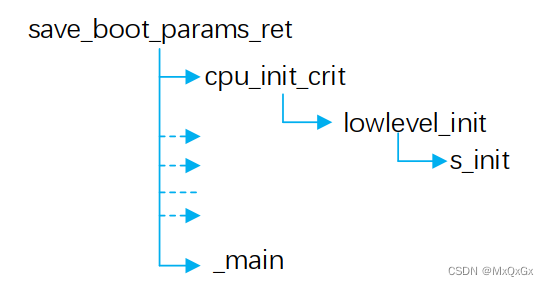

成了，最终返回到 save_boot_params_ret，函数调用路径如图 所示：

接下来要执行的是 save_boot_params_ret 中的_main 函数。
