ganglia的安装使用

1.集群内分别安装epel-release依赖，更新yum源

sudo yum -y install epel-release

2．各节点上分别安装gmond

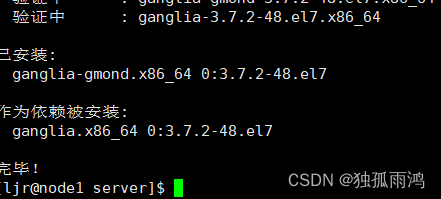

       sudo yum -y install ganglia-gmond

3.监控节点上安装gmetad和web(这里安装在node1上)

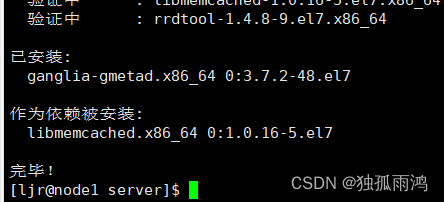

        sudo yum -y install ganglia-gmetad

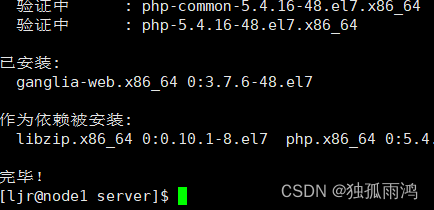

        sudo yum -y install ganglia-web

4.修改配置

        4.1node1上修改gmetad配置

                sudo vim /etc/ganglia/gmetad.conf

                找到data_source并且修改

                data_source "mycluster" node1

        这里的mycluser是你这套集群你想取的名字，而后面的node1就是监控的节点

        4.2 node1上修改ganglia配置

          sudo vim /etc/httpd/conf.d/ganglia.conf

                  <Location /ganglia>

                  Require all granted  # 表示不需要权限管理

                </Location>

         4.3 在node1上修改selinux/config(重启系统生效)

              sudo vim /etc/selinux/config

                     SELINUX=disable  # 使linux能兼容PHP

              使配置临时生效 sudo setenforce 0

             4.4 在所有节点上修改gmond配置

               sudo vim /etc/ganglia/gmond.conf

                cluster {

                  name = "mycluster" # 集群名，即gmetad的data_source里的名字

                  owner = "unspecified"

                  latlong = "unspecified"

                  url = "unspecified"

                }

                udp_send_channel {

                 #  mcast_join = 239.2.11.71  # 注释掉

                 host = node1   # 绑定监控节点

                 port = 8649

                  ttl = 1

                }

                udp_recv_channel {

                # mcast_join = 239.2.11.71 # 注释掉

                  port = 8649

          ​​​​​​​        bind = 0.0.0.0  # 表示接收来自任意连接的数据

                  retry_bind = true

                }

4.5 配置hadoop和hbase

       4.5.1修改hadoop的配置文件

              vim /export/server/hadoop/etc/hadoop/ hadoop-metrics2.properties

添加内容

       # namenode 所在的节点 多个用英文下的逗号隔开

namenode.sink.ganglia.servers = node1

# resourcemanager 所在的节点

resourcemanager.sink.ganglia.servers = node2

# datanode 所在的节点 多个用英文下的逗号隔开

datanode.sink.ganglia.servers = node1,node2,node3

nodemanager.sink.ganglia.servers= node1,node2,node3

# namenode 所在的节点 多个用英文下的逗号隔开

namenode.sink.ganglia.servers = node1

# resourcemanager 所在的节点

resourcemanager.sink.ganglia.servers = node2

# datanode 所在的节点 多个用英文下的逗号隔开

datanode.sink.ganglia.servers = node1,node2,node3

nodemanager.sink.ganglia.servers= node1,node2,node3

maptask.sink.ganglia.servers = node1

jobhistoryserver.sink.ganglia.servers = node1

       分发到各个节点

              xsync hadoop-metrics2.properties

           4.5.2 修改hbase的配置文件

                     vim /export/server/hbase/conf/hadoop-metrics2-hbase.properties

                hbase.sink.ganglia.period=10
                hbase.sink.ganglia.servers=node1

   分发到各个节点

xsync hadoop-metrics2-hbase.properties

5.在各节点上启动gmond,在node1上启动web、gemetad

              sudo systemctl start gmond

              sudo systemctl start httpd

              sudo systemctl start gmetad

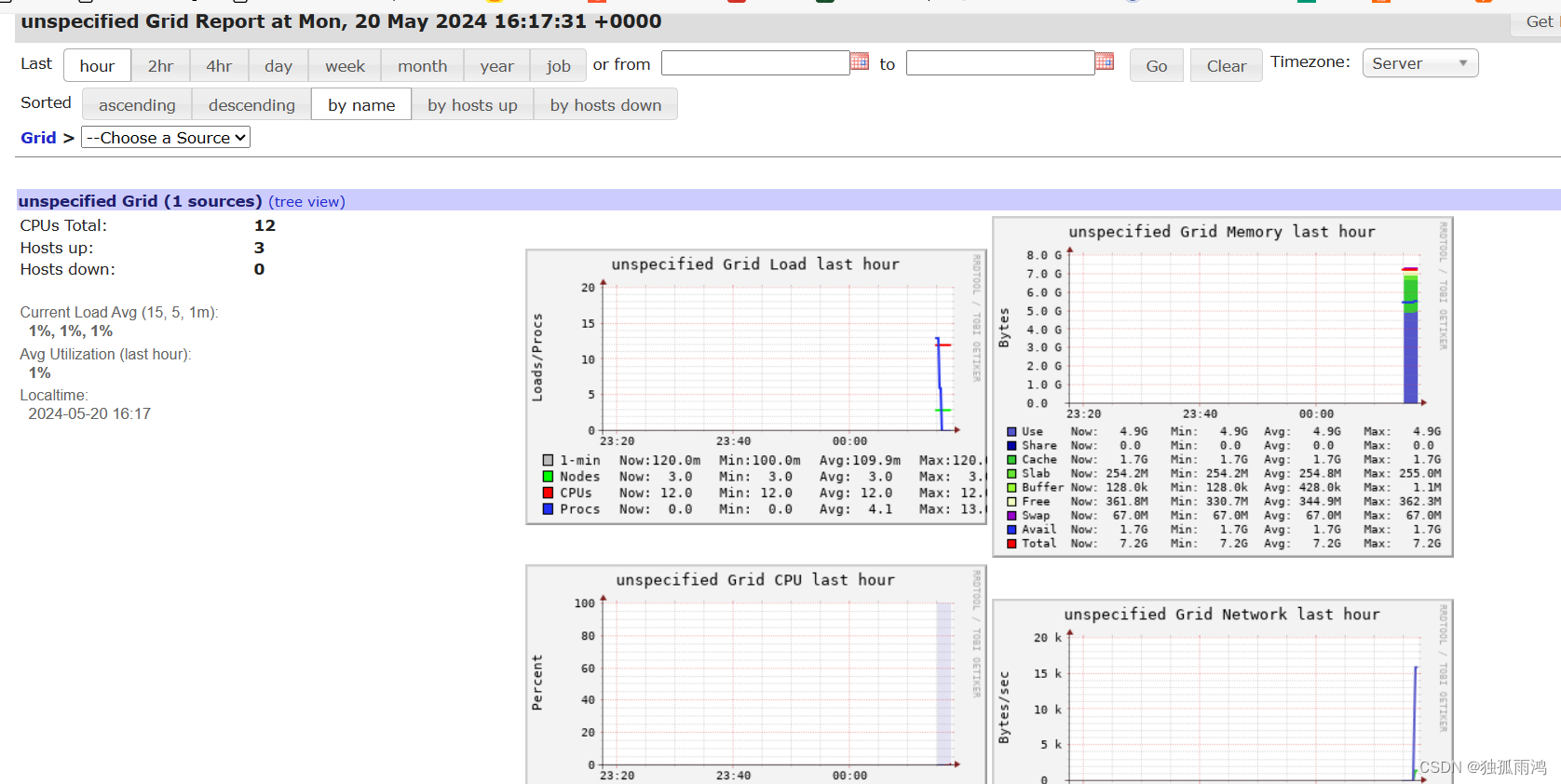

在网页上查看：http://node1/ganglia

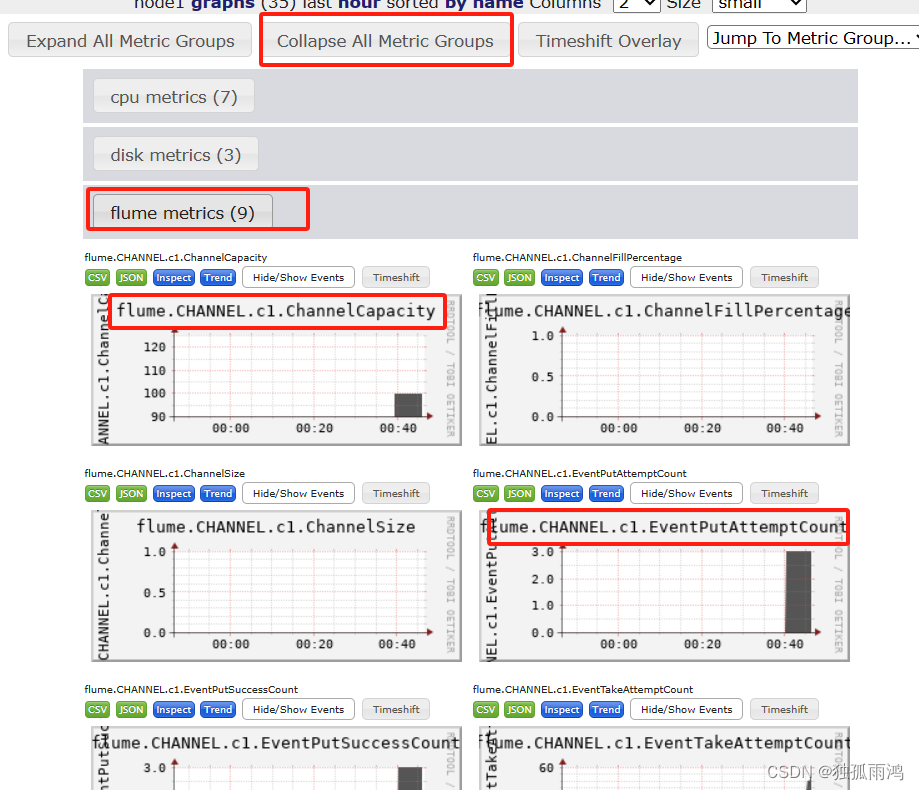

5.1对flume的监控

在执行flume任务时添加以下参数

flume-ng agent -n a1 -c conf/ -f flume1.conf -Dflume.monitoring.type=ganglia -Dflume.monitoring.hosts=node1:8649
