【Python工程化实战】Clean Architecture/Hexagonal Architecture的Python 实践指南

本指南通过构建“电商订单系统”案例，展示如何在 Python 中实现业务逻辑与外部依赖（Web 框架、数据库 ORM、消息队列等）的完全解耦，提升可测试性、可维护性与扩展性。

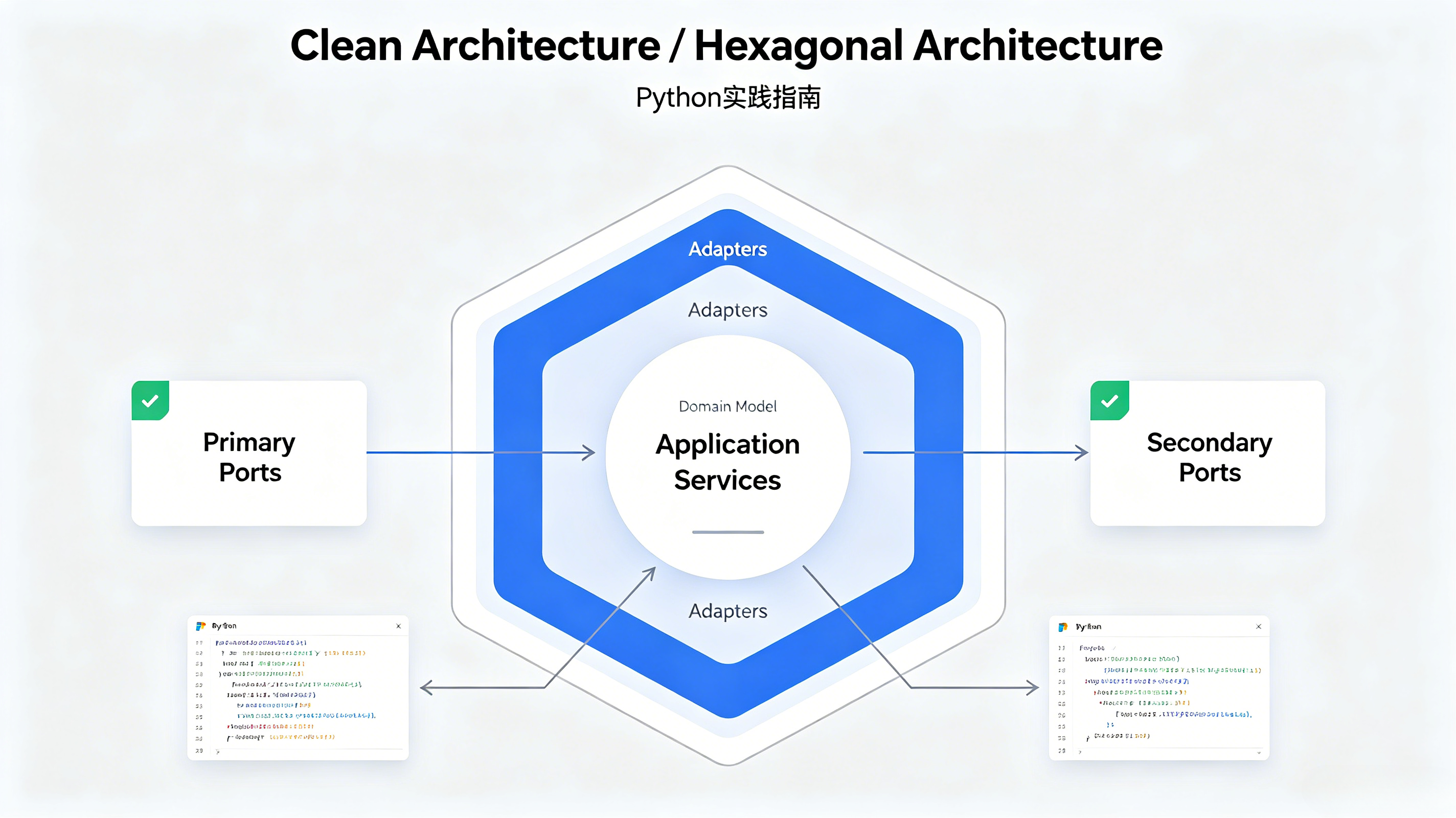

一、架构核心原则

• 依赖规则：外层依赖内层，内层（Domain）绝不依赖外层（Adapters/Infrastructure）。
• 领域纯净：核心业务逻辑不依赖任何外部技术实现（Flask、SQLAlchemy、Redis 等）。
• 端口与适配器：通过抽象接口（Port）隔离外部依赖，由适配器（Adapter）实现具体逻辑。
• 领域模型充血：业务规则和行为封装在领域模型内部，避免贫血模型。

二、项目结构

project/
├── domain/                 # 核心领域层（无外部依赖）
│   ├── models.py           # 领域模型（包含业务行为）
│   └── ports.py            # 端口接口（仓储、服务接口）
├── application/            # 应用层（编排用例，仅依赖 domain）
│   └── order_service.py    # 用例实现
├── adapters/               # 适配器层（实现端口，依赖外部技术）
│   ├── web/
│   │   └── flask_routes.py
│   └── persistence/
│       ├── orm_models.py   # ORM 模型（独立于领域模型）
│       └── sqlalchemy_repo.py
├── infrastructure/         # 基础设施层（配置、组装）
│   └── config.py
└── tests/
    ├── unit/               # 纯内存/Mock 测试
    └── integration/        # 真实组件集成测试

三、核心领域模型（充血模型）

将业务规则、校验和 ID 生成策略封装在领域对象内部，而非散落在 Service 中。

# domain/models.py
import uuid
from datetime import datetime, timezone
from dataclasses import dataclass, field
from decimal import Decimal

@dataclass(frozen=True)
class OrderItem:
    sku: str
    quantity: int = 1

@dataclass
class Order:
    user_id: str
    total_amount: Decimal
    items: list[OrderItem]
    order_id: str = field(default_factory=lambda: str(uuid.uuid4()))
    status: str = "pending"
    created_at: datetime = field(default_factory=lambda: datetime.now(timezone.utc))

    @classmethod
    def create(cls, user_id: str, total_amount: Decimal, items: list[dict]) -> "Order":
        """工厂方法：封装创建逻辑与业务校验"""
        if total_amount <= 0:
            raise ValueError("订单金额必须大于0")
        if not items:
            raise ValueError("订单至少包含一个商品")

        order_items = [OrderItem(sku=i['sku'], quantity=i.get('quantity', 1)) for i in items]
        return cls(user_id=user_id, total_amount=total_amount, items=order_items)

    def confirm(self):
        """状态流转业务规则"""
        if self.status != "pending":
            raise ValueError(f"只有待处理订单可确认，当前状态: {self.status}")
        self.status = "confirmed"

四、端口定义（接口契约）

应用层和领域层只依赖这些抽象接口，不关心具体实现。

# domain/ports.py
from abc import ABC, abstractmethod
from typing import Optional
from domain.models import Order

class OrderRepository(ABC):
    """仓储端口：定义数据访问契约"""
    @abstractmethod
    def save(self, order: Order) -> Order: ...

    @abstractmethod
    def find_by_id(self, order_id: str) -> Optional[Order]: ...

class EventBus(ABC):
    """事件总线端口"""
    @abstractmethod
    def publish(self, event_name: str, payload: dict) -> None: ...

五、应用层（用例编排）

⚠️ 关键原则：应用层只导入 domain 层，绝不导入 adapters 层。

# application/order_service.py
from decimal import Decimal
from domain.models import Order
from domain.ports import OrderRepository, EventBus

class CreateOrderUseCase:
    def __init__(self, repo: OrderRepository, event_bus: EventBus | None = None):
        self.repo = repo
        self.event_bus = event_bus

    def execute(self, user_id: str, total_amount: Decimal, items: list[dict]) -> Order:
        # 1. 调用领域模型工厂方法（业务校验在此完成）
        order = Order.create(user_id=user_id, total_amount=total_amount, items=items)

        # 2. 持久化
        saved_order = self.repo.save(order)

        # 3. 发布领域事件（可选）
        if self.event_bus:
            self.event_bus.publish("order.created", {"order_id": saved_order.order_id})

        return saved_order

六、适配器实现

6.1 ORM 模型（独立于领域模型）

# adapters/persistence/orm_models.py
from datetime import datetime
from sqlalchemy import String, Float, DateTime
from sqlalchemy.orm import DeclarativeBase, Mapped, mapped_column

class Base(DeclarativeBase):
    pass

class OrderModel(Base):
    """ORM 模型：仅负责数据库映射，不含业务逻辑"""
    __tablename__ = 'orders'

    id: Mapped[str] = mapped_column(String(36), primary_key=True)
    user_id: Mapped[str]
    total_amount: Mapped[float] = mapped_column(Float)
    status: Mapped[str]
    created_at: Mapped[datetime] = mapped_column(DateTime)

6.2 仓储适配器（含双向转换）

# adapters/persistence/sqlalchemy_repo.py
from sqlalchemy.orm import Session
from domain.models import Order, OrderItem
from domain.ports import OrderRepository
from .orm_models import OrderModel

class SqlAlchemyOrderRepository(OrderRepository):
    def __init__(self, session: Session):
        self.session = session

    def _to_domain(self, model: OrderModel) -> Order:
        """ORM → Domain 转换"""
        from decimal import Decimal
        return Order(
            order_id=model.id,
            user_id=model.user_id,
            total_amount=Decimal(str(model.total_amount)),
            status=model.status,
            created_at=model.created_at,
            items=[]  # 简化示例；实际应关联查询 OrderItem
        )

    def _to_model(self, domain: Order) -> OrderModel:
        """Domain → ORM 转换"""
        return OrderModel(
            id=domain.order_id,
            user_id=domain.user_id,
            total_amount=float(domain.total_amount),
            status=domain.status,
            created_at=domain.created_at
        )

    def save(self, order: Order) -> Order:
        model = self._to_model(order)
        self.session.merge(model)
        self.session.commit()
        return order

    def find_by_id(self, order_id: str):
        model = self.session.query(OrderModel).filter(OrderModel.id == order_id).first()
        return self._to_domain(model) if model else None

6.3 Web 适配器

# adapters/web/flask_routes.py
from decimal import Decimal
from flask import Flask, request, jsonify
from application.order_service import CreateOrderUseCase

def register_routes(app: Flask, use_case: CreateOrderUseCase):
    @app.route('/api/orders', methods=['POST'])
    def create_order():
        data = request.get_json()
        try:
            order = use_case.execute(
                user_id=data['user_id'],
                total_amount=Decimal(str(data['total_amount'])),
                items=data.get('items', [])
            )
            return jsonify({
                "order_id": order.order_id,
                "status": order.status
            }), 201
        except ValueError as e:
            return jsonify({"error": str(e)}), 400

七、依赖注入与组装

# infrastructure/config.py
from flask import Flask
from sqlalchemy import create_engine
from sqlalchemy.orm import sessionmaker
from adapters.persistence.sqlalchemy_repo import SqlAlchemyOrderRepository
from adapters.persistence.orm_models import Base
from application.order_service import CreateOrderUseCase
from adapters.web.flask_routes import register_routes

def create_app(database_url: str = "sqlite:///orders.db") -> Flask:
    # 1. 初始化基础设施
    engine = create_engine(database_url)
    Base.metadata.create_all(bind=engine)
    Session = sessionmaker(bind=engine)

    # 2. 组装依赖（手动 DI，也可用 dependency-injector 等库）
    repo = SqlAlchemyOrderRepository(Session())
    use_case = CreateOrderUseCase(repo=repo)

    # 3. 注册适配器
    app = Flask(__name__)
    register_routes(app, use_case)
    return app

八、测试示例

8.1 单元测试（纯领域逻辑，零外部依赖）

# tests/unit/test_domain.py
import pytest
from decimal import Decimal
from domain.models import Order

def test_create_order_success():
    order = Order.create(user_id="u1", total_amount=Decimal("99.9"), items=[{"sku": "SKU-001"}])
    assert order.status == "pending"
    assert order.user_id == "u1"
    assert len(order.items) == 1

def test_create_order_invalid_amount():
    with pytest.raises(ValueError, match="订单金额必须大于0"):
        Order.create(user_id="u1", total_amount=Decimal("-1"), items=[{"sku": "SKU-001"}])

def test_confirm_order():
    order = Order.create(user_id="u1", total_amount=Decimal("50"), items=[{"sku": "A"}])
    order.confirm()
    assert order.status == "confirmed"

8.2 集成测试（使用内存数据库）

# tests/integration/test_order_service.py
import pytest
from decimal import Decimal
from sqlalchemy import create_engine
from sqlalchemy.orm import sessionmaker
from adapters.persistence.orm_models import Base
from adapters.persistence.sqlalchemy_repo import SqlAlchemyOrderRepository
from application.order_service import CreateOrderUseCase

@pytest.fixture
def use_case():
    engine = create_engine("sqlite:///:memory:")
    Base.metadata.create_all(bind=engine)
    session = sessionmaker(bind=engine)()
    repo = SqlAlchemyOrderRepository(session)
    return CreateOrderUseCase(repo=repo)

def test_create_and_persist_order(use_case):
    order = use_case.execute(
        user_id="u1",
        total_amount=Decimal("100.0"),
        items=[{"sku": "SKU-001", "quantity": 2}]
    )
    assert order.order_id is not None
    assert order.status == "pending"

    # 验证持久化
    retrieved = use_case.repo.find_by_id(order.order_id)
    assert retrieved is not None
    assert retrieved.total_amount == Decimal("100.0")

九、收益总结

十、扩展方向

• CQRS：读写分离时，为 Query 定义独立的 ReadModel 和 QueryPort。
• 事件溯源：将 save() 替换为 append_event()，配合 EventStore 适配器。
• 异步支持：端口接口使用 async def，适配器对应使用 asyncpg / httpx。
• 多租户/插件化：通过配置文件动态加载不同的适配器实现类。

注意：本指南适用于中大型项目或需要长期演进的系统。对于简单的 CRUD 脚本或原型验证，请权衡架构复杂度，避免过度设计。
