Fixed RES4LYF for Flash Attention-2 on Pytorch2.11.0+cu130
RES4LYF Flash Attention Fix — Full Technical Note
This document records what failed, why, the underlying issue, what changed, and what each change means for the fix applied to sd/attention.py shipped with the custom node RES4LYF.
1. Summary
Symptom: Logs showed Flash Attention failed, using default SDPA: followed repeatedly by PyTorch internals such as
schema_.has_value() INTERNAL ASSERT FAILED (near ATen/core/dispatch/OperatorEntry.h).Typical environment: PyTorch 2.11 + CUDA 13.x (e.g. 2.11.0+cu130), ComfyUI with --use-flash-attention, workflows that use attention code paths through RES4LYF.
Fix: In RES4LYF’s attention_flash implementation, remove the extra torch.library.custom_op wrapper and remove the SDPA fallback; call flash_attn_func directly instead.
2. What the error looked like (log output)
A typical sequence was:
Warning
Flash Attention failed, using default SDPA: ...PyTorch internal assert (example)
schema_.has_value() INTERNAL ASSERT FAILED at "...OperatorEntry.h":84
Tried to access the schema for which doesn't have a schema registered yet
please report a bug to PyTorch.
Exact wording can vary by build/version, but the nature is the same: dispatcher / operator schema resolution failure.
3. Cause (what the code was doing)
Before the fix, RES4LYF attention.py roughly had a two-stage structure.
3.1 Stage 1: Another custom op layered on top of flash_attn_func
Following the same pattern as ComfyUI core, it wrapped flash-attn’s flash_attn_func like this:
@torch.library.custom_op("flash_attention::flash_attn", mutates_args=())
def flash_attn_wrapper(q, k, v, dropout_p=0.0, causal=False):
return flash_attn_func(q, k, v, dropout_p=dropout_p, causal=causal)That registers a new PyTorch custom op name: flash_attention::flash_attn.
Meanwhile, the flash-attn package itself (see flash_attn_interface.py) uses torch.library.custom_op and related APIs for PyTorch 2.4+ integration.
So the same computation was routed through two custom-op layers: flash-attn’s internal registration plus the RES4/ComfyUI-style alias flash_attention::flash_attn.
3.2 Stage 2: Fallback to torch.nn.functional.scaled_dot_product_attention on exception
try:
out = flash_attn_wrapper(...)
except Exception as e:
logging.warning(f"Flash Attention failed, using default SDPA: {e}")
out = torch.nn.functional.scaled_dot_product_attention(...)If stage 1 raised or hit dispatcher inconsistency, execution fell through to SDPA after the warning. That path could hit dispatcher issues of the same family, which is why logs looked like warning + internal assert in succession.

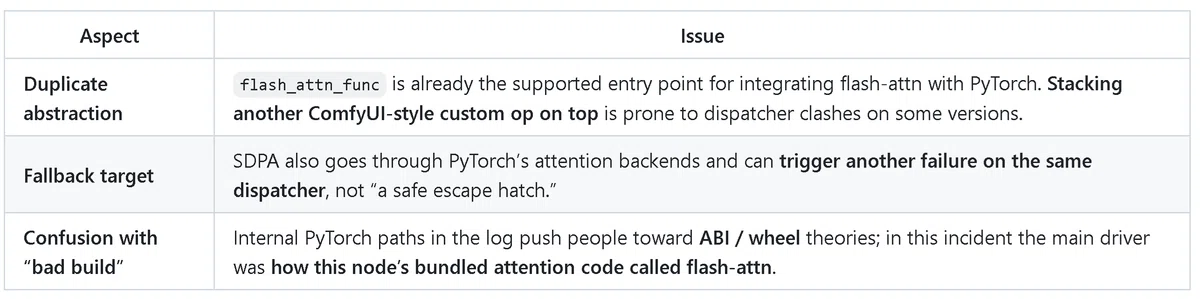

4. The underlying issue (design level)
The core problem: deviation from the intended API (flash_attn_func directly) plus routing failures into SDPA.
5. Why it didn’t show on PyTorch 2.10 but did on 2.11
With the same RES4 code, differences in OperatorEntry / schema resolution mean 2.10 often did not reach the same internal asserts (or behaved differently on the same path).
2.11 changed dispatcher behavior, so the double wrapper + fallback combination surfaced there.
This does not mean “2.10 was correct”—it means latent risk that didn’t surface on 2.10.

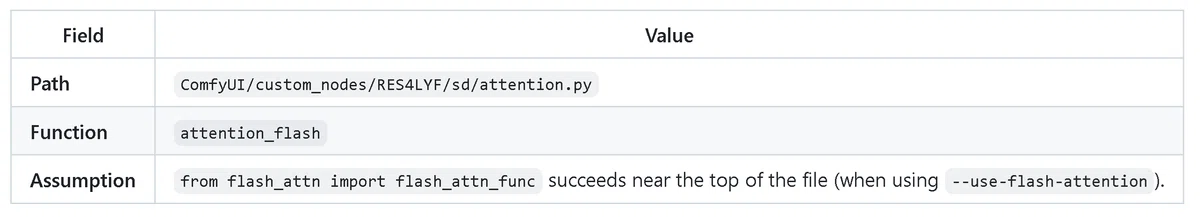

6. File changed
7. What changed (code details)
7.1 Removed
The entire flash_attn_wrapper block
@torch.library.custom_op("flash_attention::flash_attn", ...)
@flash_attn_wrapper.register_fake
The AttributeError stub flash_attn_wrapper
The try / except inside attention_flash
Success path: flash_attn_wrapper(q.transpose(1, 2), ...)
Failure path: logging.warning(...) + torch.nn.functional.scaled_dot_product_attention(...)
7.2 Core of attention_flash after the fix (excerpt)
def attention_flash(q, k, v, heads, mask=None, attn_precision=None, skip_reshape=False, skip_output_reshape=False):
if skip_reshape:
b, _, _, dim_head = q.shape
else:
b, _, dim_head = q.shape
dim_head //= heads
q, k, v = map(
lambda t: t.view(b, -1, heads, dim_head).transpose(1, 2),
(q, k, v),
)
if mask is not None:
if mask.ndim == 2:
mask = mask.unsqueeze(0)
if mask.ndim == 3:
mask = mask.unsqueeze(1)
assert mask is None
# Match ComfyUI core: call flash_attn_func directly (avoid duplicate custom_op + broken SDPA fallback on torch 2.11+).
out = flash_attn_func(
q.transpose(1, 2),
k.transpose(1, 2),
v.transpose(1, 2),
dropout_p=0.0,
causal=False,
).transpose(1, 2)
if not skip_output_reshape:
out = (
out.transpose(1, 2).reshape(b, -1, heads * dim_head)
)
return out(The real file continues with optimized_attention wiring as before.)

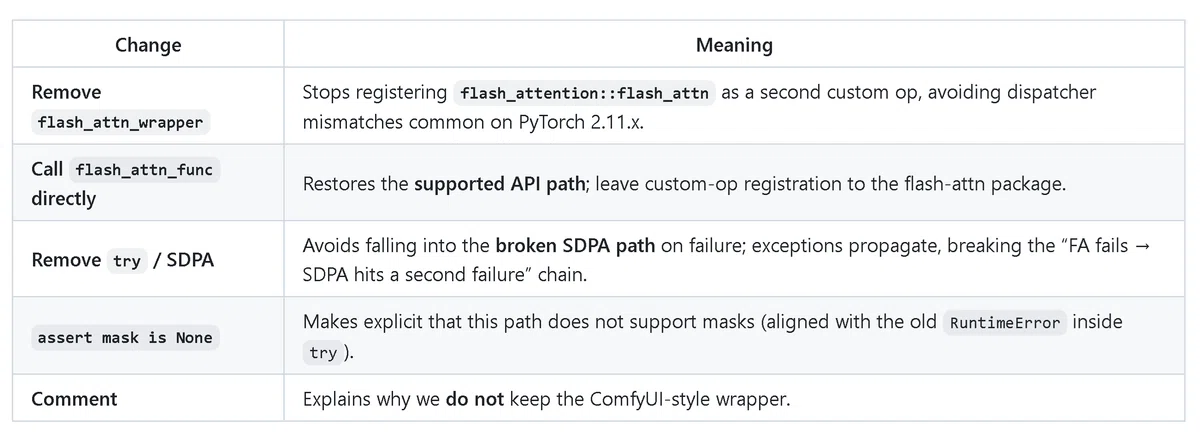

8. Meaning of each change
9. Relationship to ComfyUI core
ComfyUI core comfy/ldm/modules/attention.py may still contain the same pattern (flash_attn_wrapper + SDPA fallback) historically.
In this incident, logs pointed to RES4LYF’s sd/attention.py, and symptoms cleared with only the RES4 fix—meaning that workflow actually used RES4’s attention implementation.
If you avoid touching core, other workflows that hit core’s same pattern could still show issues; mitigations include runtime patching from another custom node so updates don’t overwrite edits.
10. Operational notes
Updating RES4LYF may overwrite sd/attention.py and remove this fix. Re-check diffs after upgrades using this note.
--use-flash-attention and an installed flash-attn remain prerequisites.
After the fix, if Flash Attention truly fails (e.g. OOM), it no longer auto-falls back to SDPA; you’ll see an exception instead. That trades “silent double failure” for easier debugging.
11. One-sentence summary
RES4LYF wrapped flash_attn_func in an extra custom_op and fell back to SDPA on failure, which conflicted with PyTorch 2.11’s dispatcher and produced internal asserts in logs; calling flash_attn_func directly and removing the SDPA fallback removes that underlying risk.
Document note: Based on facts at investigation/fix time. Behavior may vary with PyTorch / ComfyUI / RES4LYF versions.
…
Uploaded newest Flash Attention v2.8.3 built on Pytorch2.11.0+cu130.
Uploaded newest Sage Attention2&3 built on Pytorch2.11.0+cu130.
