M5Stack Stopwatch開発キット用にシンプルなアプリを作ってみた際のちょっとしたメモ： VS Code ＋ PlatformIO ＋ M5Unified

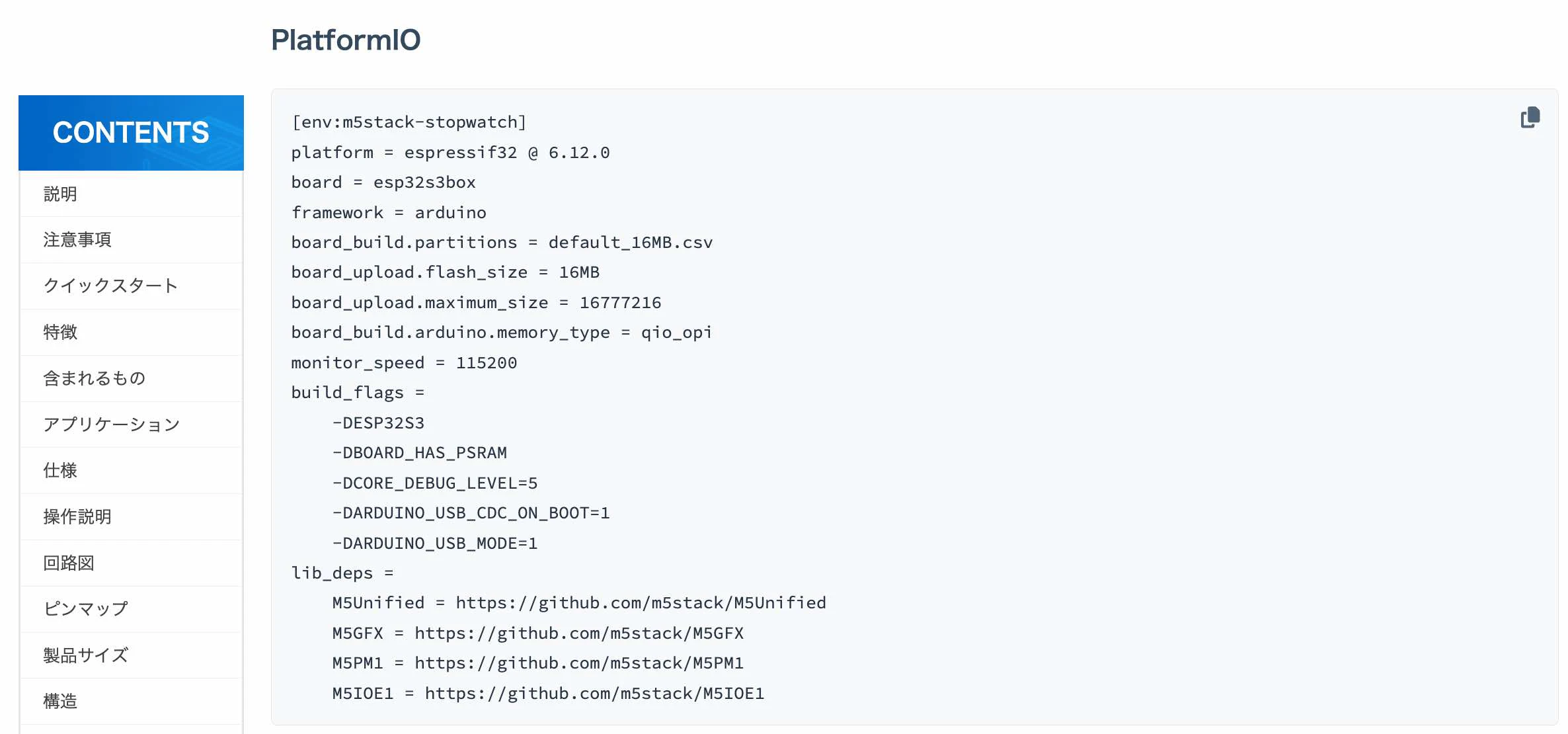

[env:m5stack-stopwatch]
platform = espressif32 @ 6.12.0
board = esp32s3box
framework = arduino
board_build.partitions = default_16MB.csv
board_upload.flash_size = 16MB
board_upload.maximum_size = 16777216
board_build.arduino.memory_type = qio_opi
monitor_speed = 115200
build_flags =
    -DESP32S3
    -DBOARD_HAS_PSRAM
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
    -DARDUINO_USB_MODE=1
lib_deps =
    M5Unified = https://github.com/m5stack/M5Unified
    M5GFX = https://github.com/m5stack/M5GFX
    M5PM1 = https://github.com/m5stack/M5PM1
    M5IOE1 = https://github.com/m5stack/M5IOE1

#include <M5Unified.h>
#include <math.h>

static M5Canvas canvas(&M5.Display);

static bool     running  = false;
static uint32_t accumMs  = 0;  // 停止までの累積
static uint32_t startMs  = 0;  // 直近スタート時刻
static uint32_t lastDraw = 0;

static uint32_t elapsedMs()
{
  return running ? accumMs + (millis() - startMs) : accumMs;
}

static void drawHand(int cx, int cy, float a, float len, float w, uint16_t color)
{
  float tx = sinf(a), ty = -cosf(a);
  float px = -ty * w, py = tx * w;
  canvas.fillTriangle(cx + px, cy + py,
                      cx - px, cy - py,
                      cx + tx * len, cy + ty * len, color);
}

static void draw()
{
  const int W  = canvas.width();
  const int H  = canvas.height();
  const int cx = W / 2, cy = H / 2;
  const int R  = (W < H ? W : H) / 2 - 6;

  canvas.fillSprite(TFT_BLACK);

  for (int i = 0; i < 60; ++i) {
    float a   = i * 6 * DEG_TO_RAD;
    int   len = (i % 5 == 0) ? 20 : 8;
    canvas.drawLine(cx + sinf(a) * (R - len), cy - cosf(a) * (R - len),
                    cx + sinf(a) * R,         cy - cosf(a) * R,
                    (i % 5 == 0) ? TFT_WHITE : canvas.color565(90, 90, 90));
  }

  const uint32_t ms = elapsedMs();
  const uint16_t handColor = running ? canvas.color565(0, 230, 140)
                                     : canvas.color565(255, 170, 0);

  float minA = (ms % 3600000UL) / 3600000.0f * TWO_PI;
  float secA = (ms % 60000UL)   / 60000.0f   * TWO_PI;
  drawHand(cx, cy, minA, R * 0.55f, 5, TFT_WHITE);
  drawHand(cx, cy, secA, R * 0.85f, 3, handColor);
  canvas.fillCircle(cx, cy, 8, handColor);

  // --- デジタル表示 ---
  char buf[16];
  snprintf(buf, sizeof(buf), "%02lu:%02lu.%02lu",
           (unsigned long)(ms / 60000 % 100),
           (unsigned long)(ms / 1000 % 60),
           (unsigned long)(ms / 10 % 100));
  canvas.setTextDatum(middle_center);
  canvas.setFont(&fonts::Font7);
  canvas.setTextSize(1);
  canvas.setTextColor(canvas.color565(180, 180, 180));
  canvas.drawString(buf, cx, cy + R / 2);

  canvas.pushSprite(0, 0);
}

void setup()
{
  auto cfg = M5.config();
  M5.begin(cfg);

  M5.Display.setRotation(0);
  M5.Display.setBrightness(200);

  canvas.setPsram(true);
  canvas.setColorDepth(16);
  canvas.createSprite(M5.Display.width(), M5.Display.height());

  draw();
}

void loop()
{
  M5.update();

  bool tap = M5.Touch.getDetail().wasClicked();
  if (M5.BtnA.wasClicked() || tap) {
    if (running) { accumMs += millis() - startMs; running = false; }
    else         { startMs  = millis();           running = true;  }
  }
  if (M5.BtnB.wasClicked()) {
    running = false;
    accumMs = 0;
  }

  if (millis() - lastDraw >= 33) {
    lastDraw = millis();
    draw();
  }
}
