Brick Lined Walls in Wood Framed Homes

How to Identify Brick Nogging in Buildings

Brick wall "insulation" or brick nogging may be found in wood framed buildings built up to about 1900. Usually these homes have exterior clapboards and interior plaster walls.

Often these brick-lined wood-framed homes were built with balloon stud framing, no exterior sheathing (they used diagonal bracing), and exterior clapboards right on the studs. In homes framed in this manner, if the exterior wall cavities were left empty, the walls were drafty and uninsulated.

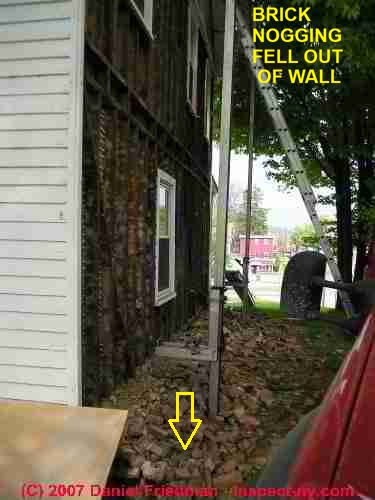

Some homes, such as the Weisman home in Montgomery NY (shown above) and another home photographed by Arlene Puentes (shown below), were built with brick-lined walls, bricks being mortared in between the studs on all floors and even extending into the attic.

Other benefits of this design included fire stopping effects and added thermal mass to the building, making temperature changes less rapid and thus the house more comfortable.

The presence of brick in wood frame wall cavities, such as in the photograph shown at the top of this page (Courtesy Joe and Beth Weisman) may help determine the age of a building.

The condition of the brick "nogging" may also be an important indicator of the building leak history.

Also see BRICK VENEER WALL AIR LEAKS for a discussion of modern insulation methods for brick veneer walls.

An owner of such a home usually finds out about the brick in the home walls at the first renovation or wiring or plumbing project. But a home inspector and home buyer might also be able to detect brick-lined walls and should be interested in what this construction method might mean to the new owner.

These bricks are not structural, and they were simply mortared in place between wood framed wall studs and rested on the sill plates of each floor. It would be unusual to find brick wall linings in interior walls unless at one time the "interior" wall was at one time a building exterior wall structure.

Brick Nogging was generally not intended to be exposed to view, and served the purpose of blocking wind that blew through older homes constructed without an exterior sheathing - clapboards were nailed directly to the structural frame.

Typical wall construction was stud framing, 16" o.c., diagonal wood bracing in walls, clapboard exterior, rough masonry wall filler on all floors and extending into the attic. Interior walls were covered by plaster on wood lath.

Opening walls filled with brick nogging or other masonry will often reveal rough and varying styles of masonry (as it was not intended to be seen) that went in fast.

The masons may have used a variety of bricks and rubble. I [DF] suspect that this construction method may have been adopted by builders who had observed the short life and pest infestation problems that followed colonial and later attempts at wall insulation using natural materials like straw and corncobs.

Websters Dictionary gives this definition: "Nogging: (?), n. Rough brick masonry used to fill in the interstices of a wooden frame, in building."

Wordnet Dictionary gives this similar definition: "Noun 1. nogging - rough brick masonry used to fill in the gaps in a wooden frame".

"Nogging" is a term also used by some to describe exposed brick lining in timber framed walls in which the brick is left in view on the building exterior for aesthetic reasons.

Because brick (or other masonry) placed in building cavities as a wind barrier and thermal mass source was in that use not intended to be exposed, you can expect to see the workmanship quite rough in appearance and inconsistent from one building area to another (as any and various masonry material at hand might be used) compared with masonry intended to be left exposed to view.

Features of Homes with Brick Lined Walls - Brick Nogging

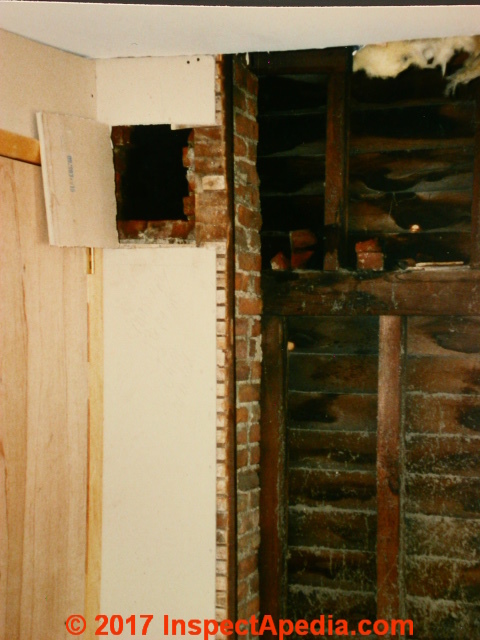

Photo: we opened this brick-lined clapboard-covered wall in a home in Poughkeepsie, New York, to show some remaining brick nogging or lining along with extensive rot of the clapboards and wall framing.

• Air leaks & possibly water leaks:

  Brick infill or nogging may have provided a considerable reduction in air leaks or drafts where it was installed with some care, but even so, the combination of brick expansion damage and cracking and wood timber or other framing shrinkage with age can cause cracks to open in or around the brickwork that meant that the brick nogging-lined walls had more air leaks than expected.

  In a typical 1800's wood framed wood-clapboard sided house like 28 West Street that's described in this article, wind-blown rain or leaks around windows combined with these gaps and cracks meant that there may have been water leaks into the wall cavity as well.

  Over time wet wall cavity could in turn mean wood framing rot, an attractant to wood destroying insects, and depending on what materials are present, mold growth.

  Some examples are at MOLD GROWTH on SURFACES, PHOTOS_GROUP_10  where we include mold growth on wood framing and also at HIDDEN MOLD in PANELING where we illustrate mold growth behind paneling nailed up over damp plaster or drywall.
• Building Age:

  Brick nogging helps set a possible age for the home. Generally in North America brick nogging was used from at least as early as 1790 and as late as 1930, though one must add that experience teaches us that individual builders may have used brick as a wall lining outside of this general date range.

  I [Friedman] found brick nogging lining the walls of a 1790 house on Livingston Street in Poughkeepsie NY when working on its restoration and repair.

  So finding bricks in your house walls is often a clue about when it was built.


• Insulating Value

  of Brick Wall Lining: Brick has an "R" value estimated at about 0.11", so a brick lined wall has an R-value of something like R1 overall (including the wood siding and interior plaster) - pretty low compared with modern R11-R20 walls.

  Adding conventional insulation such as fiberglass batts, blown-in fiberglass, or blown-in cellulose or foam (to save heating and cooling costs) are not an option unless walls are stripped from inside or outside first, and bricks removed.

  In an extensive old house renovation, if the project includes replacing exterior siding or interior wall surfaces, and in homes where accurate historic preservation of original construction materials and details is not a requirement, it is common to remove all of the wall-lining bricks in order to substitute a more effective insulating material.

  Owners who have taken this step (such as the Weismans who provided some of the photos on this page) report a significant reduction in home heating costs.
• Weight of Brick-Lined Walls:

  Alan Carson, (Carson Dunlop Associates, Toronto) estimates that weight would be about 400 lb. per stud cavity per floor.

  (Clay bricks weigh about 150 lb./cu. ft.).

  If the structure is damaged by rot or insects, or modified by "remodeling" there is risk that the added weight of bricks in upper floor walls could require additional support.

  It is therefore be the case that supporting wood structural members such as sills or headers or wall bottom plates may sag or crush over time and when suffering the effects of moisture, insect damage or decay, exacerbated by the weight of the brick nogging above.

  Watch out: Beware of remodeling on lower floors which includes the removal of bricks in the wall cavities - it may be necessary to add support to be certain that weight of brick lining upper floor walls does not cause a structural problem for the lower floors.

• Brick Wall Liners and Fire Safety:

  If the building was framed using balloon framing rather than platform framing it may be necessary to add fire blocking if bricks are removed since you may have removed what amounted to fire-blocking in the wall cavities.
• Brick expansion due to moisture absorption or thermal changes

  can sometimes result in displaced wood framing members or cracks in the brick lining that become air leaks .

  At BRICK WALL THERMAL EXPANSION CRACKS  I point out that longer expanses of solid brick masonry without expansion joints can lead to serious damage.

• Brick Lined Wall Collapse Warning:

  Joe and Beth Weisman pointed out at their website [References below] that when removing exterior siding [or interior plaster] one should be careful to watch out for falling bricks. In their renovation one wall dumped quite a few bricks on the ground [Image above] when it was opened.

  Puentes points out that in earthquake prone areas, "hidden" brick or other masonry wall lining could fall into an upper room and perhaps through a ceiling into a room below, making this construction method an additional safety concern for houses in earthquake zones. [We don't know if this method has been used in earthquake areas.]

  And just as the Weisman's found out when they pulled off exterior siding, brick nogging was not mechanically fastened to the building framing. It relied simply on the original bond between mortar and the surfaces of adjoining wood beams, studs, top plate and bottom plate. Both moisture and mechanical movement may break that bond leading to collapse of the brick nogging.

• Brick Walls, Condensation, and Mold:

  Brick wall lining may increase condensation on the interior of some exterior walls and could be a dampness or mold issue.

  You may see evidence of this as mold behind pictures that have been hung on exterior walls for some time. You'll also see this in solid-masonry homes.
• Electrical Wiring:

  Running new electrical circuits in exterior walls will encounter the brick lining which may need to be removed in some cases (or run wires behind floor baseboards or in other chases).

  Carson wondered if the absence of electrical wiring (seen as no outlets nor switches) in the walls of an older building might suggest brick lining.

Where Will You Find Clues Suggesting the Presence of Brick Lined Walls

Age of the home:

If the home was built before 1900 and is a wood frame structure, especially in cold climates where people care more about wind blowing through walls, brick nogging may have been used.

This photo shows the wall-cavity or interior surface of the exterior clapboard sheathing used on this home.

The draftiness of walls constructed in this manner was a reason that some builders used brick wall lining as not only insulation but as "wind barrier".

I you look closely at the exposed side of the clapboards in this photograph where some wall lining bricks have conveniently fallen away, you'll see circular saw cut marks - an indicator that this house is not one of the older instances of brick wall lining.

I estimate that this house dates from 1890.

New York State had circular saw lumber mills sooner than some other states, and saw marks are not a precise dating method, but had this been a home from 1840-1850 we may have seen that the saw blade had left straight blade marks across the clapboard - indicating a power-operated vertical "pit saw."

Had the saw blade marks been straight but alternating in a tight "X" pattern across the clapboard the board would have been cut on a hand-operated pit saw, and this would be a still-older home.

In the basement, bricks may be visible between floor joists sitting atop the building sills, especially in balloon-framed homes. Arlene Puentes' photograph (above) shows how subtle this clue may be as very little brick may be visible from the basement.

In the living area - bricks may be discovered in wall cavities during renovations or remodeling

Mold on Walls: while certainly not a sure bet, the presence of mold behind wall hangings occurring on exterior walls may indicate the effects of brick lined wall cavities. The brick lining can mean that the surface of this wall stays cooler longer and has more condensation on the wall surface than will be seen on the surface of interior walls.

Sagging at Sills:

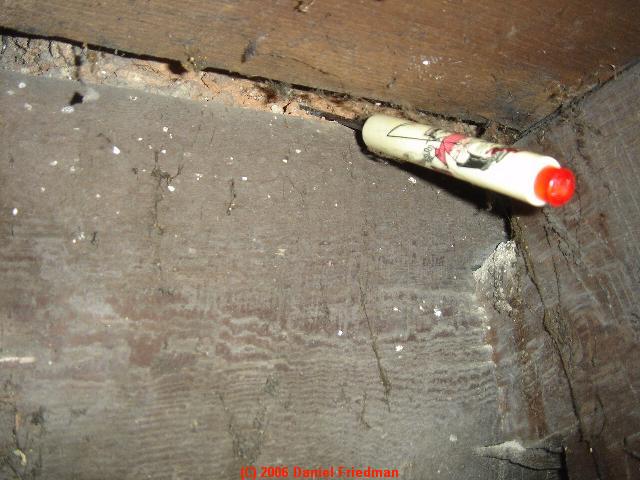

At the interior side of exterior walls, usual degrees of sill or rim joist crushing in areas of rot or insect damage could include the added effects of the extra weight of bricks in the building exterior walls.

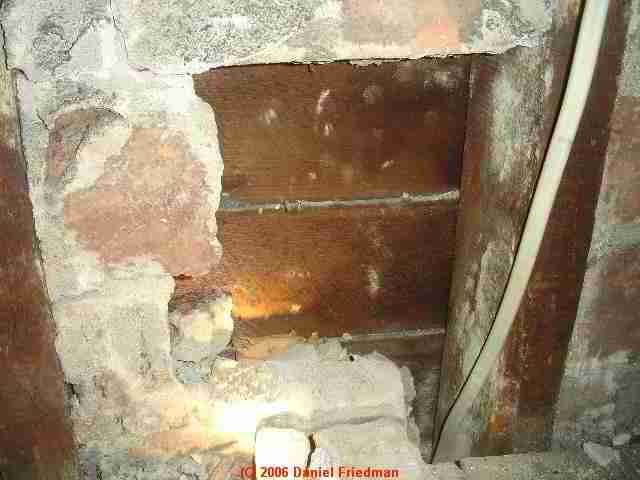

In the attic - (photo above / left) bricks may be visible between wall studs extending up into the attic.

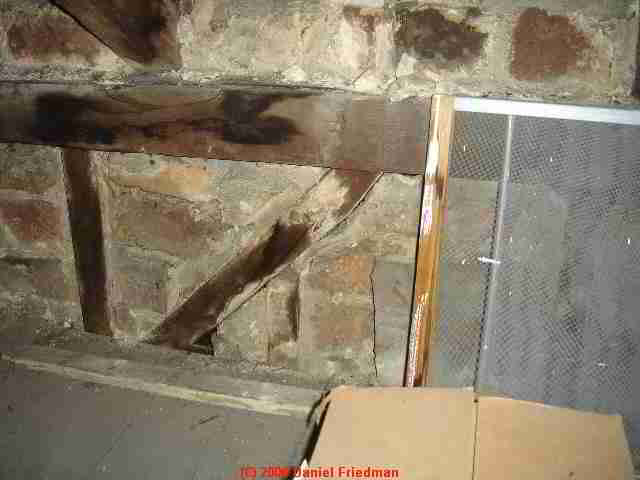

In this photograph of a brick-lined wall you can see that some of the bricks have fallen out of the wall cavity and onto the attic floor.

This is not itself a structural problem but it may indicate a history of roof leaks at this spot. Roof leaks may in turn track to rot or insect damage.

Based on this theory and buttressed by leak stains visible in the photograph, I'm guessing that these fallen bricks were on an eaves wall not a gable end wall.

We discuss this further below at "Repairs".

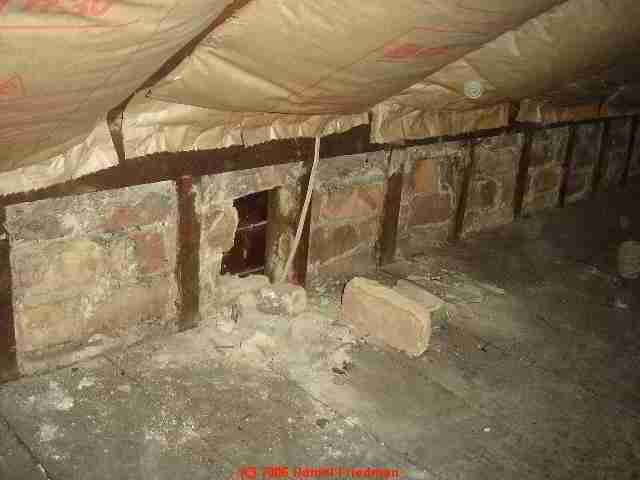

Arlene's photograph of this brick-lined wood framed wall in an attic (below) shows the diagonal bracing commonly used in this generation of wood frame brick-lined construction.

The care with which the mason filled-in with brick and mortar even around the diagonal bracing confirms the intention of this usage as an air barrier.

Exterior Renovations:

From the exterior - bricks may be visible if siding is removed for repairs or other building work

What to do if Portions of Your Brick Wall Lining Have Fallen into the Attic

• Clean up

  the fallen masonry and debris.
• Diagnose

  the reason that the bricks fell into the attic: the masonry wall filler may have been damaged by water from roof leaks or ice dam leaks if the home is in a northern climate.

  If this is the case you'll want Tobe sure you've corrected the cause of water leakage. If the brick collapse is traced to water leaks be sure to also look for evidence of structural rot of nearby wood framing members, and be alert for evidence of insect damage since leaks can attract carpenter ants or termites into a building, including an attic.
• Consider rebuilding

  the brick liner in the wall cavity if you are not planning to renovate the area. Use soft mortar as was used originally. This option makes sense if only one or two bricks have fallen from place.
• Alternatively, use modern insulation -

  especially where lots of wall-lining bricks have fallen or are loose and appear about to fall, insulate the wall empty wall cavity with other insulating material such as fiberglass batts.

How feasible would it be for me to tear down the wall from the inside, remove the brick, insulate, and then Sheetrock?

Our reader asked:

I have an old 1830's home in Kingston NY which has brick lined walls.

One area of our home (which most likely used to be a porch) is especially drafty. It's not large... perhaps 10'x20'.

How feasible would it be for me to tear down the wall from the inside, remove the brick, insulate, and then Sheetrock? Is that a crazy idea? 2018/01/23 Peter

Moderator Reply: suggestions when replacing brick nogging with modern insulation

Peter,

It is certainly not a crazy idea to open a brick lined wall, remove bricks, add insulation, and re-sheathe the wall, working all from the inside. I have done that exact task successfully working just south of you in Poughkeepsie, NY.

This is a labor intensive approach but it has advantages of permitting an inspection of the condition of the wall structure, checks for leaks, insect damage, rot, need for other repairs or reinforcement, addition of electrical and plumbing lines if needed.

In my photo below of a home I renovated (28 West Street, Wappingers Falls, New York) I show not just the discovery of an improperly abandoned wood-stove flue pipe connection into a brick chimney (upper left in the photo) but also wood clapboards nailed directly to the wall studs of this 1865 home in Wappingers Falls, NY.

The walls of this home might have been brick-lined at some point but probably not. Someone had blown-in cellulose insulation, which I removed. Click to enlarge the image and you'll see the many water stains from rain that had entered this clapboard sheathed home's wall cavity.

Just adding insulation into the wall means having wet insulation after the next wind-driven rainstorm.

But in a gut renovation to add insulation to a brick lined wall by removing the brick there are some things to watch out for.

1. Before removing bricks in a stud bay,

inspect the studs for rot or insect or other damage.

The brick infill might actually be holding up the wall if the framing is damaged. In that case you'll need to support the top plate and replace bad studs, sills, and possibly to add let-in diagonal bracing.

2. When removing the brick look at the inside surface of the exterior wall

for extent of water leakage.

Often brick lined walls were in homes built with diagonal stud bracing but no exterior sheathing, just the clapboards.

The bricks may have tolerated getting wet but fiberglass or open-celled foam do not like water (risking mold and other damage). In that case I would consider closed cell foam.

3. While the wall is open

that's a great time to consider adding any necessary electrical circuits, such as to add receptacles.

An alternative approach to gutting the wall cavity is to leave everything in place and to laminate solid foam insulation on the interior walls, covering that with a new layer drywall.

In my opinion that ends up being just about as much work, as you have to build out trim around windows and doors, replace window and door trim, and you give up the advantages shown above.

There are also risks of creating moisture traps in the wall structure.

Use the "Add Image" button next to the Comment button below on this page to post some photos of what you find and we may be able to offer other suggestions.

Comment: removing brick, adding foam in a brick-lined home, Newburgh NY

2018/06/19

John said:

I am in the process of replacing the bricks in my house with insulation. There is a 1920s addition that we found to be full of bricks when we tried to have insulation added last year.

We contracted to have the siding removed so the bricks could be pulled from the outside - spray foam is scheduled this week followed by re installation of the original siding.

We were able to salvage the majority of the bricks as well. They were held together with plaster instead of mortar/cement and separated easily. They were a mixture of older handmade bricks and newer, formed ones.

The construction is post and beam with mortise and tenon joints (with some pegs) but was added after the house was built in 1869.

It appears that another building was moved or taken apart to be used for this addition and the bricks were installed at that point.

The attached picture is one of the three walls opened up.

This building is in the Orange Lake area of the town of Newburgh New York.

Reply: follow-up questions to consider

Thanks for the excellent photo and description of brick wall lining, John. I've seen similar homes elsewhere in the Hudson Valley including in Dutchess county.

Replacing the brick nogging with spray foam will give up thermal mass in exchange for an air-tight, highly-insulated home. Ultimately that will reduce your energy costs.

Be sure that you also run any wiring or plumbing in walls where needed before adding the insulation.

Questions:

Are you using open celled or closed-cell foam? See FOAM SPRAY INSULATION TYPES

Did you consider leaving the brick and adding solid foam sheathing on the building interior or exterior?

Brick Nogging History in North America

Brick nogging in either horizontal inlay patterns or at times in a herringbone pattern served as a combination of insulation, an interior finish (where left exposed), or as a plaster backing (where plastered-over) in buildings and was used therefore in both exterior and in some interior walls.

Brick nogging is a European method of construction which was brought to the new world in the early-nineteenth century. It was a common construction method that employed masonry as infill between the vertical uprights of wood framing. (Biggs, 2005)

Biggs places the origins of brick nogging in England in the late 1400's, expanding in use in the early 1500's when high volume and better quality brick more available.

He goes on to describe brick nogging or brick lining in wood framed walls of Kent Tavern, a stagecoach stop between Boston Massachusetts and Montreal, Canada that was constructed beginning in 1833.

The use of brick infill was widely used mostly in the Northeastern U.S. and across Canada until about 1910 - 1930 as a sort of "insulation" principally providing thermal mass. If the work was meticulous it might also have stopped drafts.

In the prairie states and provinces in areas where brick was not cheap and easily available, early builders used other insulation materials such as seaweed (in coastal areas) or dried corn husks or even straw in other areas. (We describe two of these at SEAWEED & EELGRASS INSULATION and at STRAW BALE CONSTRUCTION.)

Really: Well not entirely. Nogging was used, however in some western or mid-wester homes even where clay brick was not available, instead using adobe bricks as the infill - reported by Monica at BRICK LINED WALLS FAQs.

By the 1930's Owens-Corning's development of fiberglass insulation meant that a new, clean, low-cost, light weight and high-R insulating material was available, but I (DF) renovating and restoring older homes in the Northeast in the 1980's and into the early 2000's sometimes found wood framed homes that had no insulation whatsoever.
